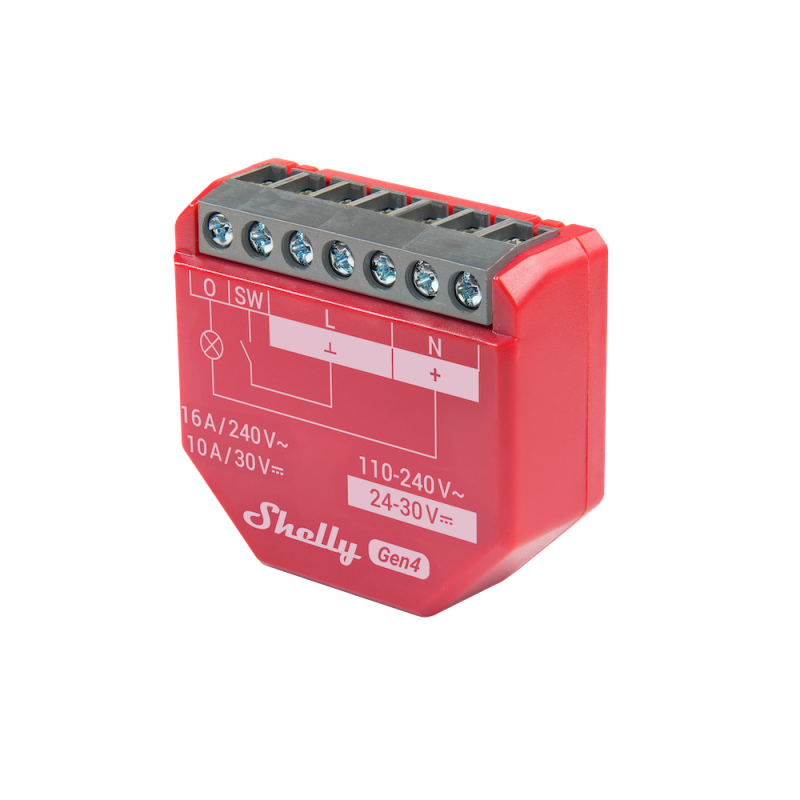

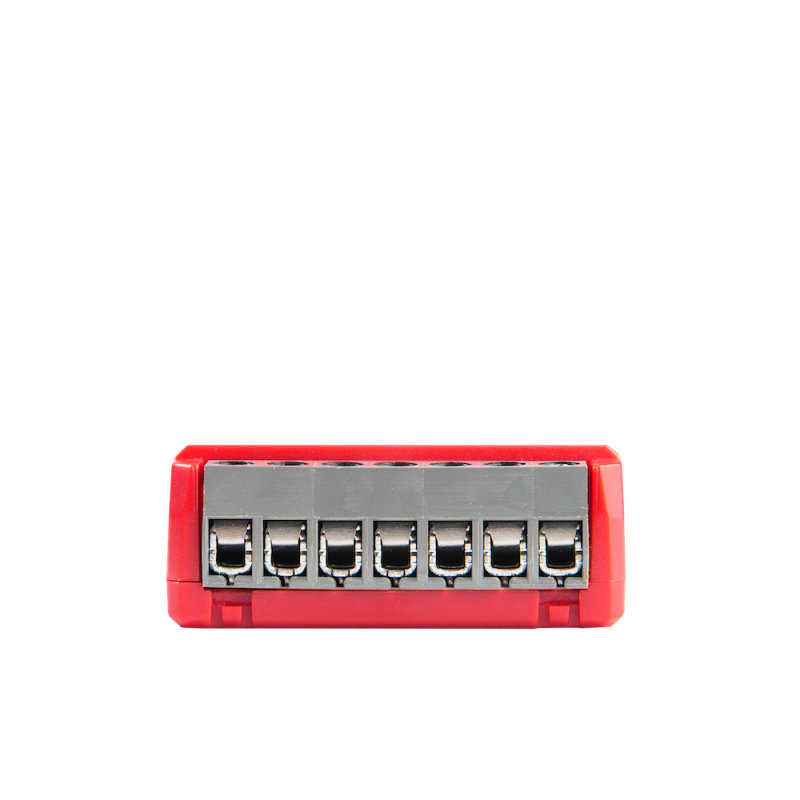

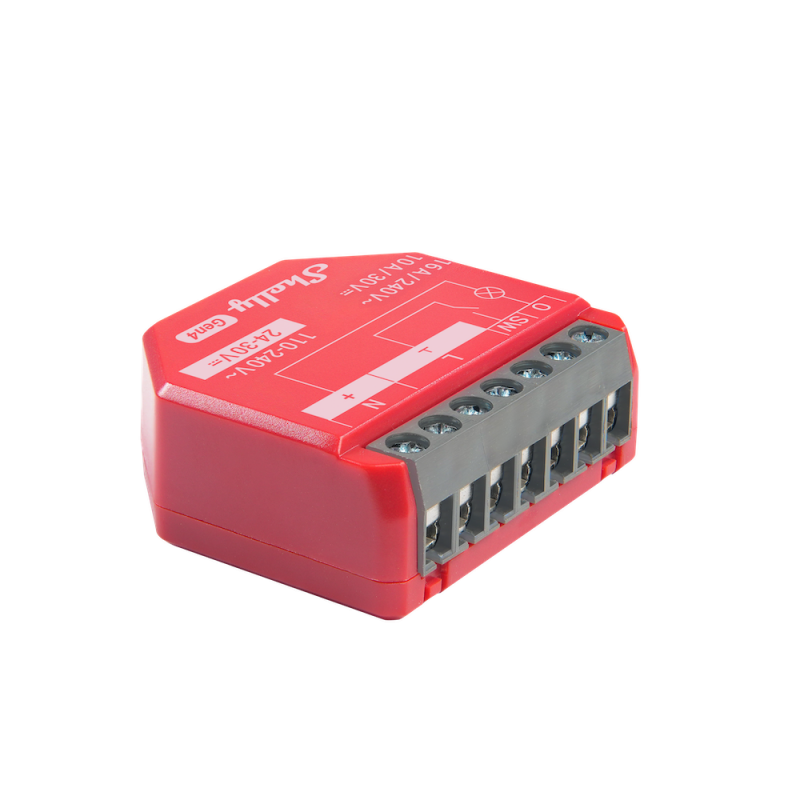

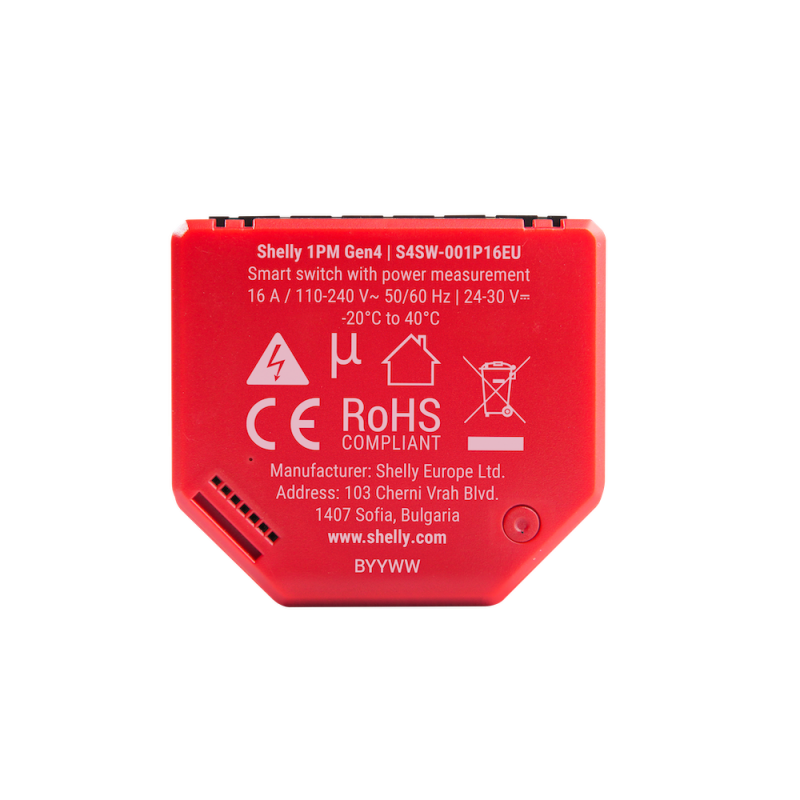

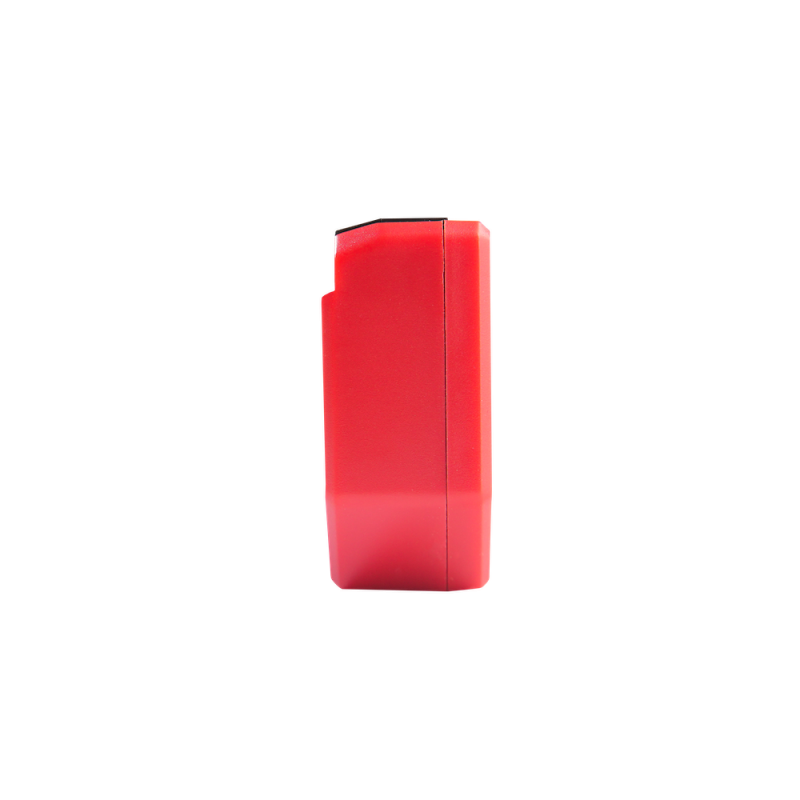

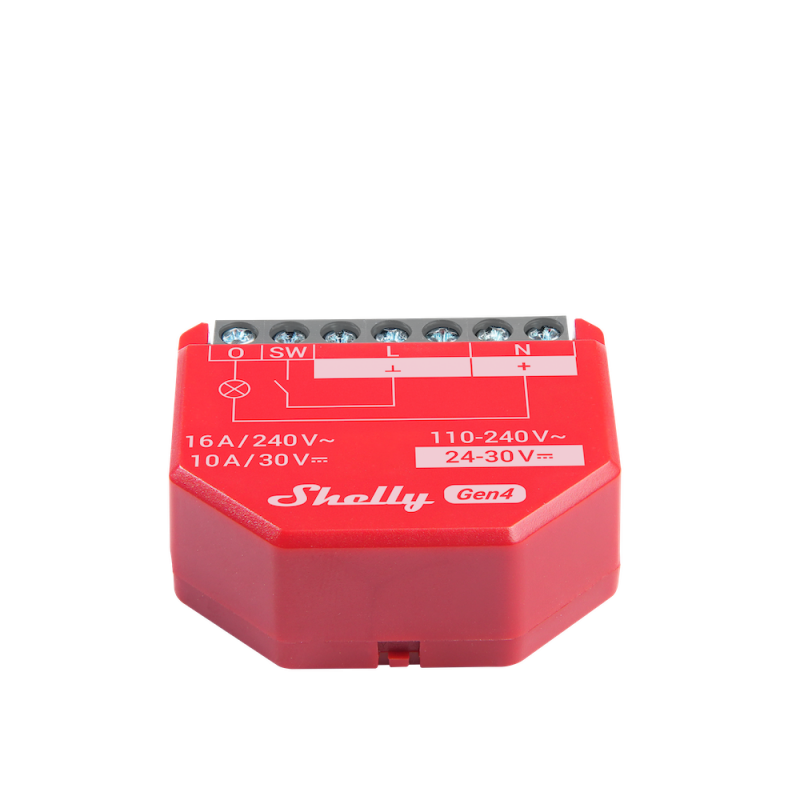

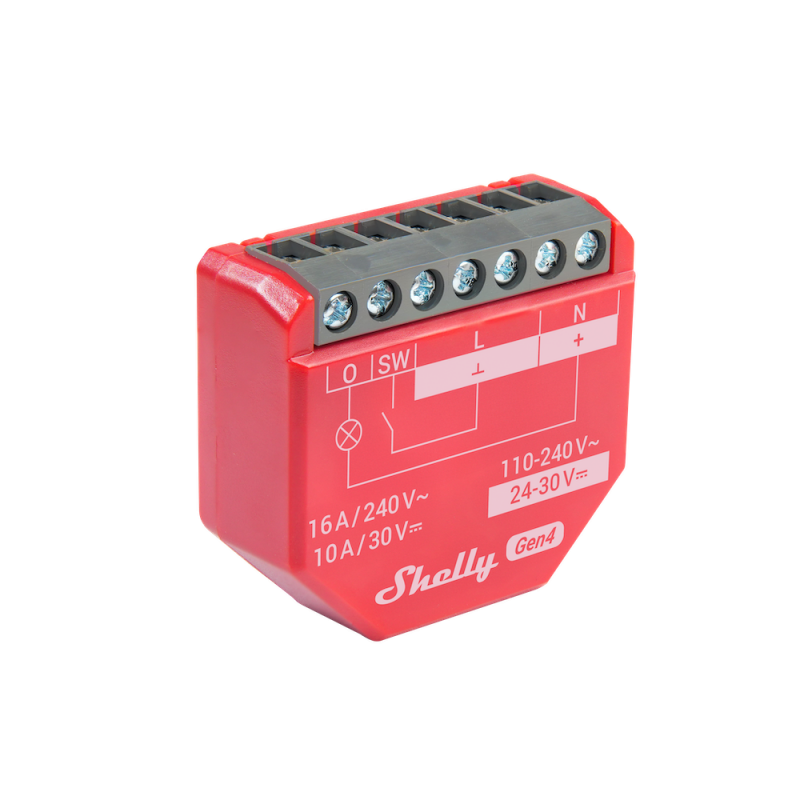

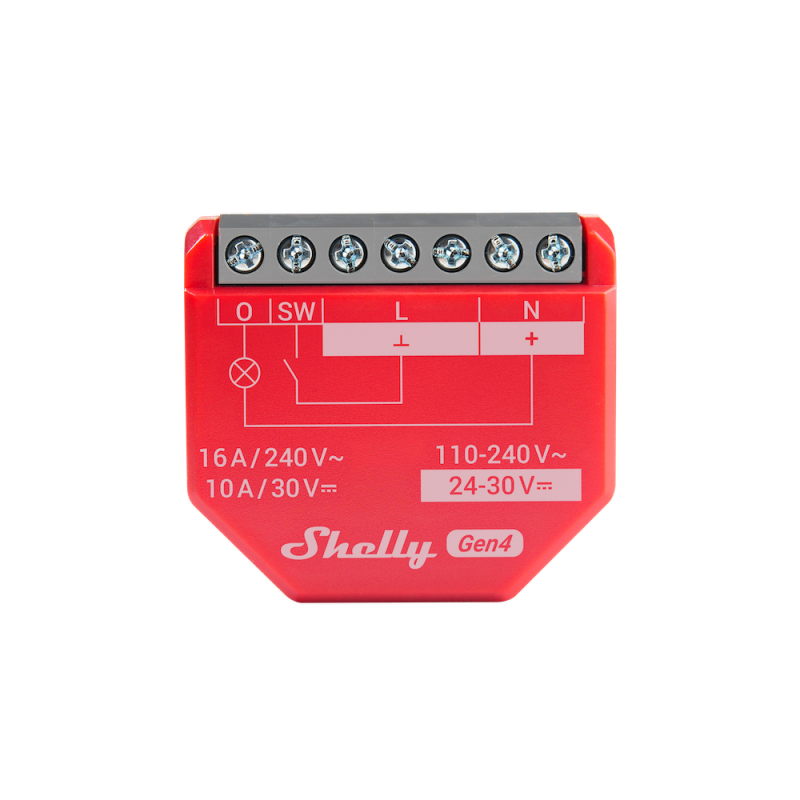

Shelly 1PM (gen 4)
Article No. |
070717 |
EAN |
3800238070717 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
The Shelly 1PM Gen4 is an advanced and versatile smart relay designed to give you complete control and overview of your electricity consumption. With built-in power metering, you can accurately monitor the energy usage of connected appliances, helping you optimize your consumption and save money. Its compact design makes it easy to install in existing electrical installations.
Why choose Shelly 1PM Gen4?
- Power metering: Get real-time data on power consumption directly in the Shelly app, giving you insight and the ability to make smarter energy decisions.
- Wi-Fi connectivity: Connects directly to your Wi-Fi network without the need for a separate hub, enabling remote control and monitoring wherever you are.
- Versatile applications: Ideal for automating and measuring the consumption of lighting, heaters, white goods, motors, and other electrical devices up to 16A.
- Safety features: Built-in protection against overvoltage, overcurrent, and overtemperature ensures safe operation for both the device and your connected appliances.
- Flexible control: Control your devices via the Shelly app, schedule times for automatic on/off, or integrate with popular voice assistants like Google Home and Amazon Alexa.
- Easy installation: Designed for smooth integration into standard electrical installations (installation by a qualified electrician is strongly recommended).
- Local control: Also works without an internet connection for local control via MQTT, CoAP, and REST API, providing robustness and flexibility.
With Shelly 1PM Gen4, you take control of your energy consumption and elevate your home automation to the next level.
Files
Specifications
| Physical Properties | |
| Dimensions (HxWxD) | 37x42x16 mm / 1.46x1.65x0.63 inch |
| Weight | 27 g / 0.95 oz |
| Screw terminals, max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall console |
| Shell material | Plastic |
| Shell color | Red |
| Terminal color | Grey (Mouse Grey) |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical Properties | |
| Power supply | 110 - 240 V~, 24 - 30 V? |
| Power consumption | < 1 W |
| Neutral needed | No |
| External protection | Circuit breaker according to EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
| Output Circuit Ratings | |
| Max. switching voltage | 240 V~, 30 V? |
| Max. switching current | 16A (240 V~), 10A (30 V?) |
| Sensors, Meters | |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Internal temperature sensor | Yes |
| Radio | |
| Wi-Fi Protocol | 802.11 b/g/n/ax |
| RF band | 2412 - 2472 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol | 5.0 |
| RF band | 2402 - 2480 MHz |
| Max. RF power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee Protocol | 802.15.4 |
| Zigbee repeater | Yes |
| RF bands | 2400 to 2483.5 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller Unit | |
| CPU | ESP-Shelly-C68F |
| Flash | 8MB |
| Firmware Capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| EAN | 3800238070717 |
