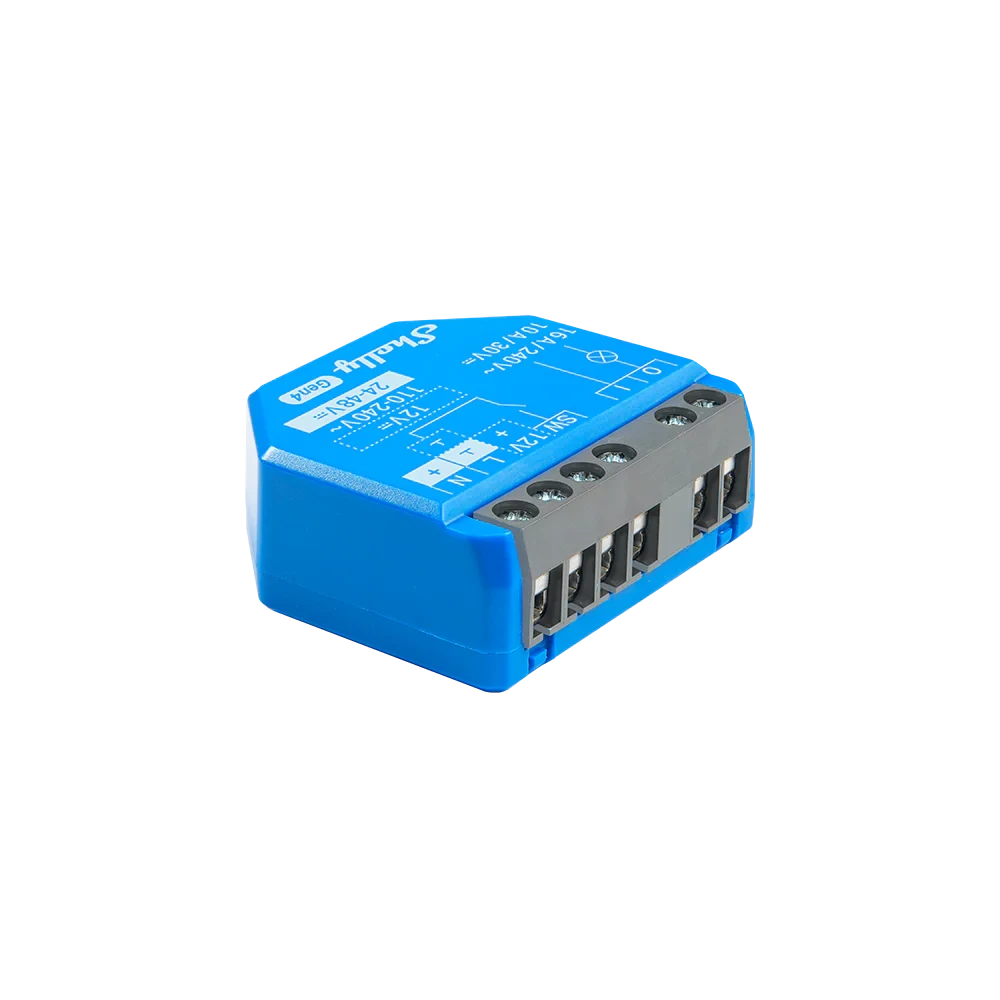

Shelly 1 (gen 4)
The Smart Universal Relay Switch
Article No. |
070687 |
EAN |
3800238070687 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly 1 (Gen 4)
Transform your ordinary devices into smart ones with Shelly 1 (Gen 4), the latest generation of compact and versatile Wi-Fi relay switches. Designed for easy integration into your existing electrical system, Shelly 1 (Gen 4) empowers you to remotely control and automate a wide range of devices directly from your smartphone or tablet. Whether it's controlling lighting, garage doors, irrigation systems, or other electrical appliances, Shelly 1 (Gen 4) offers a reliable and flexible solution to make your home or business smarter.
Key Features:
- Wi-Fi Connected: Connects directly to your 2.4 GHz Wi-Fi network without the need for a separate hub.
- Remote Control via App: Control connected devices remotely with the free Shelly Cloud app (iOS & Android). Turn on and off, check status, and create custom schedules.
- Wide Range of Applications: Can be used to control lighting, fans, heaters, garage doors, gates, irrigation systems, and much more.
- Improved Performance (Gen 4): Equipped with a more powerful processor and increased memory for faster response and improved stability compared to previous generations.
- Enhanced Security: Improved security features to protect your connection and data.
- Scripting Support: Offers the ability to create custom scripts for advanced automation and personalized functions.
- Protocol Support: Supports a variety of protocols including MQTT, REST API, and more for easy integration with other smart home systems and platforms.
- Compact Design: Small and discreet design that makes it easy to install behind existing switches, in junction boxes, or in other tight spaces.
- DIN Rail Mounting: Can be mounted on a standard DIN rail, making it ideal for installation in electrical panels.
- Compatible with Voice Assistants: Supports voice control via popular assistants like Google Assistant and Amazon Alexa.
- Weekly Schedules: Create detailed schedules to automate your devices based on time and day of the week.
Areas of Use:
- Smart Lighting: Make your regular lights smart and control them via the app or voice commands.
- Garage Door and Gate Automation: Open and close your garage door or gate remotely.
- Heating and Ventilation Control: Turn heaters or fans on and off as needed.
- Irrigation Systems: Automate your garden irrigation.
- Access Control: Integrate with electric locks for remote control of doors.
Files
Specifications
| Size (HxWxD) | 37x42x16 mm / 1.46x1.65x0.63 inch |
| Weight | 26 g / 0.92 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall console |
| Shell material | Plastic |
| Shell color | Blue |
| Terminals color | Grey (Mouse Grey RAL7005, R(106) G(110) B(106), HEX #6A6E6A, LRV 15.19.) |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply | 110-240 V~, 24-48 V?, 12 V? |
| Power consumption | < 1 W |
| Neutral not needed | No |
| External protection | Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
| Output circuits ratings | |
| Max. switching voltage | 240 V~, 30 V? |
| Max. switching current | 16 A/240 V~, 10 A/30 V? |
| Sensors, meters | |
| Internal-temperature sensor | Yes |
| Radio | |
| Wi-Fi Protocol | 802.11 b/g/n |
| RF band | 2412 - 2472 ?Hz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol | 4.2 |
| RF band | 2402 - 2480 MHz |
| Max. RF power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Zigbee Protocol | 802.15.4 |
| Zigbee repeater | Yes |
| RF bands | 2400 to 2483.5 MHz |
| Max. RF power | < 20 dBm |
| Range | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU | ESP-Shelly-C68F |
| Flash | 8MB |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| EAN | 3800238070687 |
