934607
Artikel nr. |
934607 |
EAN |
4007529934607 |
Salgs- og leveringsbetingelser
14-dages pengene-tilbage garanti
Levering: 2-3 hverdage
Beskrivelse

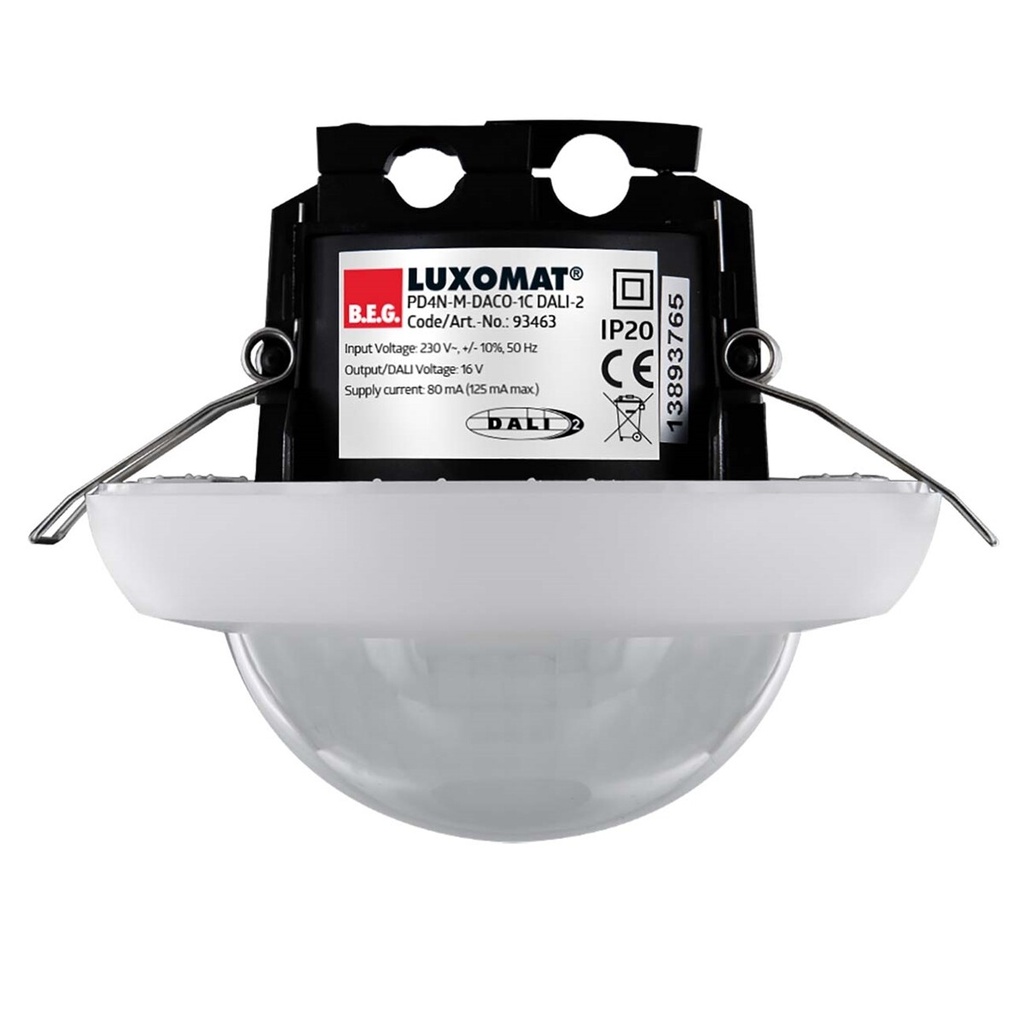

Rörelsevakt Närvaro detektor 1-kanal DALI och 1 relä – automatisk lysstyring der tænder ved behov og sparer energi.
Specifikationer
| Voltage | 230 V AC +/-10% 50 Hz |
| Dimensions | Ø 106 x 95 mm |
| Power consumption | approx. 2 W |
| slave devices | up to 8 |
| Detection area | horizontal 360° (Ceiling mounting) |
| Range | max. Ø 24 m across, max. Ø 8 m towards, max. Ø 6.4 m seated |
| Monitored area (tangential movement) | 450 m² / 2.5 m mounting height |
| Mounting height min./max./recommended | 2 m / 10 m / 2.5 m |
| Degree / class of protection | IP20 / Class II |
| Impact strength | IK04 |
| Ambient temperature | -25 °C to +50 °C |
| Housing | polycarbonate, UV-resistant |
| Material color | white mat, similar to RAL9010 |
| DALI output | 80 mA (guaranteed), 125 mA (max.), Shut-down mechanism |
| supported control gear | DT0, DT5, DT6, DT7 |
| supported control devices | - (single master) |
| Follow-up time | 1 min - 150 min |
| Orientation light | 10 - 30 % / OFF / 5 min - 60 min / ? |
| Brightness set value | 10 - 2500 Lux |
