WiFi Pixel LED controller
Article No. |
034213 |
EAN |
7350143034213 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Works only with 2.4G WIFI network. DON’T use 5G WIFI network. IOS 10/Android 4.4 or later version.If your LED light is 5V,please use 5V power supply.
Wide Compatibility. Support almost all the one-wire or two-wire LED driver ICs, such as FCOB RGB WS2811 IC,WS2811,WS2812B,WS2813,WS2814,WS2815,SK6812RGBW, WS2801, SK6812RGB, LPD6803, LPD8806, APA102, TM1913,SK9822, UCS1903, SM16703, DMX512. (DO NOT control 5050RGB or RGBW led strip which has no IC )
User-friendly design. MAX 2048 pixels (Recommand 1500Pixels)in total. Saves user settings when power off.

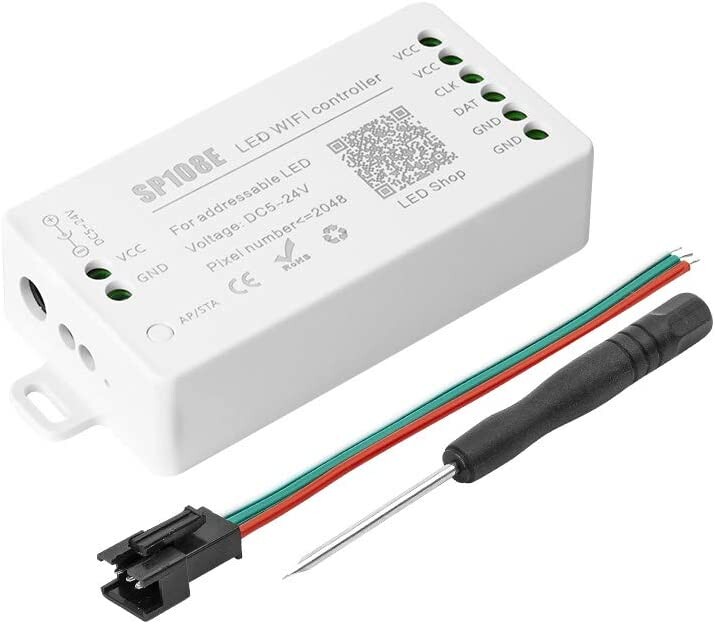

- 1x SP108E WiFi LED controller
- 1x 3pin female JST connector
- 1x Mini screwdriver
- 1x User manual
- (Note: power supply/mobile/controller/led strip not included!)
Files
Specifications
| Part Number | ?SP108E |
| Special Feature | ?wifi, Max 2048 IC, Color calibration, Support All IC Chip, AP/STA Mode |
| Working Voltage | DC5V~24V |
| Working Current | 20mA~130mA |
| Light Source Type | ?LED |
| Power Source | ?DC |
| Light Color | ?RGB |
| IC Point | 1024 points |
| IC type | WS2811 - WS2812 - WS2812B - WS2813 - WS2815 - WS2818 - WS2801 - SK6812 - SK6812RGBW - SK9822 - P943S - P9411 - P9413 - P9414 - P9412 - P9813 - TX1812 -TX1813 - TM1804 - TM1814 - TM1913 - UCS1903 - LPD6803 - LPD8806 - APA102 - APA105 - GS8206 - GS8208 - P943S - P9411 - P9413 - P9414 - P9412 - P9813 - TX1812 -TX1813 - TM1804 - TM1814 - TM1913 - UCS1903 - LPD6803 - LPD8806 -APA102 - APA105 - GS8206 - GS8208 |
| Controller Type | ?App Control |
| Connectivity Protocol | ?Wi-Fi |
| Number of Light Sources | ?2048 |
| Working Temperature | -20~60 Degrees Celsius |
| Product Size | 85mm*45mm*22mm |
| Product Weight | 40g |
| Certificates | CE, RoHS |
