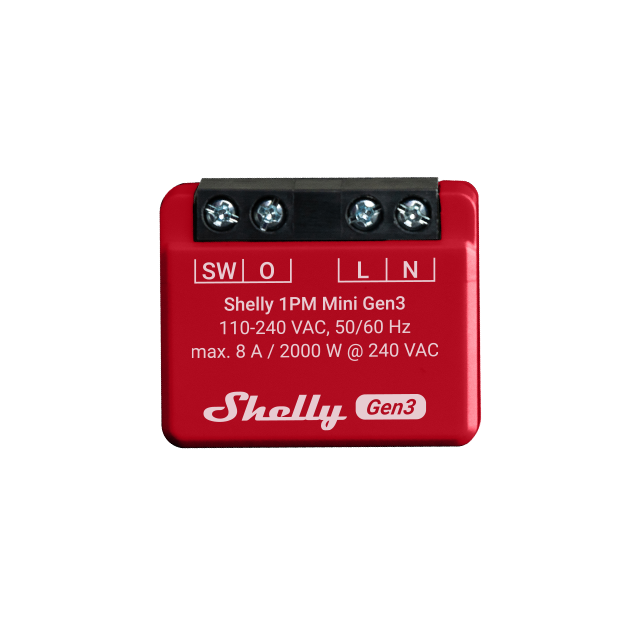

Shelly 1PM Mini gen. 3
Wi-Fi-controlled smart switch, 1 channel 8A, with current measurement
Article No. |
261590 |
EAN |
3800235261590 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Automate your lights or small electrical devices in less than 10 minutes and control and monitor them from anywhere. Shelly Plus 1PM Mini is small enough to fit behind any wall socket or outlet and can be easily installed afterwards.
No hub required! Easy control via the Shelly Smart Control app, most platforms and protocols, and voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
- Supports up to 8 A at 240 VAC
- Functions as both Wi-Fi range extender and Bluetooth gateway
- Accurate real-time current measurement with free cloud data storage for analysis and optimization of energy consumption
- Extremely fast processor for immediate response - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates
Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance
Specifications
| Size (HxWxD) | 29x34x16 ±0.5 mm |
| Weight | 0.1 kg |
| Mounting | Wall mounting |
| Maximum torque for screw terminals | 0.4 Nm / 3.5 lbf.in |
| Conductor cross-section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Stripped conductor length | 5 to 6 mm / 0.20 to 0.24 in |
| Housing material | Plastic |
| Color | Red |
| Temperature | -20 °C to 40 °C |
| Maximum alternating current voltage | 240 V |
| Maximum alternating current load | 2000 W |
| Maximum alternating current current | 8A |
| Warranty | 2 years |
| EAN | 3800235261590 |
