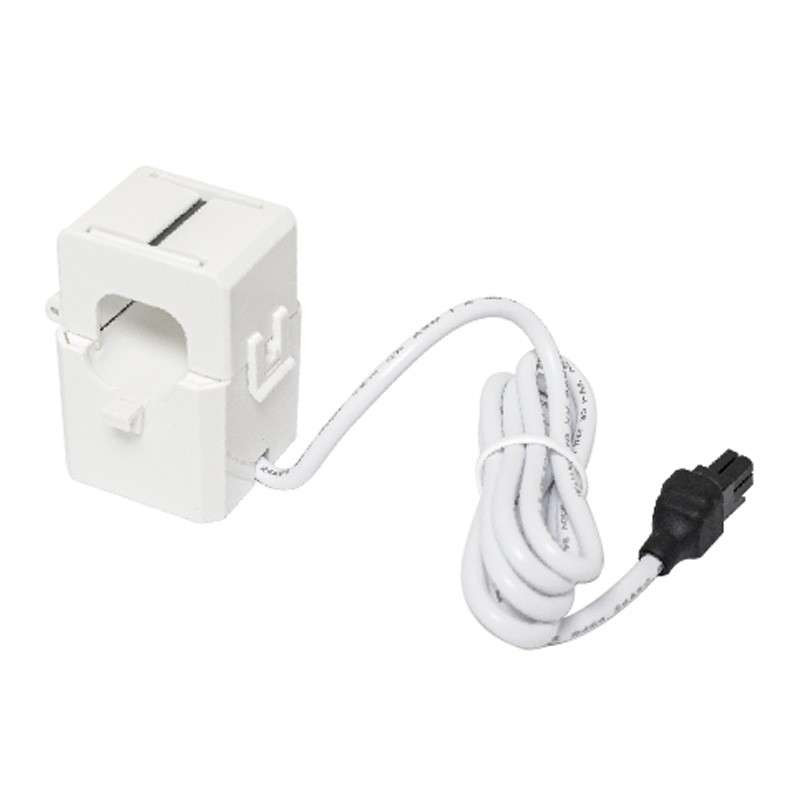

Shelly Current Transformer 120A
Article No. |
202135 |
EAN |
3809511202135 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly 120A Transformer Clamp is a pantograph pliers for the Shelly EM. It is required to read the power consumption data with the Shelly EM.
This is an accessory item and does not include the Shelly EM.
Specifications
| Accuracy | 1% |
| Core | Ferrite core |
| Electrical strength | 3000VAC 1mA60s |
| Inner diameter | 17 mm |
| Load resistance | 20? |
| Nominal primary current | 120A |
| Nominal secondary current | 40mA |
| Saturation current | >=120A |
| Size | 31mm x 45mm x 30mm |
| Compatible 50A | Shelly EM |
| Compatible 120A | Shelly EM, Shelly 3EM |
| EAN | 3809511202135 |
