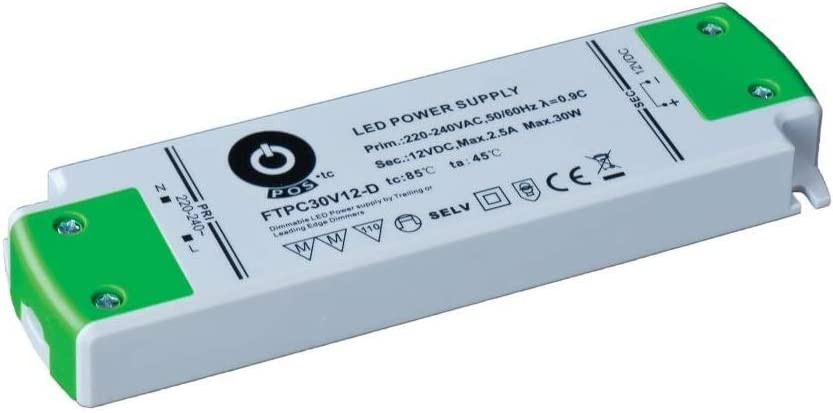

Power supply 12V, 30W, 2,5A, Dimmable
30W LED Triac Dimmable Switching Power Supply
Article No. |
123140 |
EAN |
5902135123140 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Features:
- Constant voltage design
- European AC input range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- AC phase cut (leading or trailing edge) dimmable
- Built-in active PFC function
Suitable for dimming LED strips
Files
Specifications
| Rated Voltage | 12V |
| Rated Current | 2.5A |
| Current Range | 0,04 ÷ 2.5A |
| Rated Power | 30W |
| No Load Output Voltage (max.) | 16V |
| Line Regulation | ± 1% |
| Load Regulation | ± 5% |
| Voltage Tolerance | ]± 5% |
| Ripple & Noise (max.) | 1500mVP-P |
| Setup, Rise Time | 500ms, 30ms / 230VAC at full load |
| Hold up Time (typ.) | 5ms / 230VAC at full load |
| INPUT Voltage Range | 180 ÷ 264VAC |
| Frequency Range | 47 ÷ 63Hz |
| Power Factor (typ.) | PF > 0.9 / 230VAC at full load |
| Efficiency (typ.) | 83% |
| AC current (typ.) | 0.2A / 230VAC |
| Inrush current (max.) | 90A / 230VAC(25°C) |
| No Load Power Consumption (max.) | 0.5W |
| Over Current Range | > 100% type, Decrease output current. Recovers automatically after fault condition is removed. |
| Short Circuit | type, Decrease output current. Recovers automatically after fault condition is removed. |
| Over Temperature Range | 110°C ± 10°C type, Decrease output current. Recovers automatically after fault condition is removed. |
| Working Temperature | -20°C ÷ +45°C |
| Working Humidity | 45 ÷ 85% RH non-condensing |
| Storage Temperature and Humidity | -30°C ÷ +70°C, 10 ÷ 95% RH non-condensing |
| Safety Standards | Compliance to EN61347-1, EN61347-2-13 |
| Withstand Voltage | IN/OUT: 3.75kVAC |
| EMC Emission | Compliance to EN55015 |
| EMC Immunity | Compliance to EN61547 |
| Harmonic Current | Compliance to EN61000-3-2, EN61000-3-3 |
| Dimensions | 159 x 46 x 18mm (L x W x H) |
| Weight and Packing | 0.2kg; 50pcs./box |
