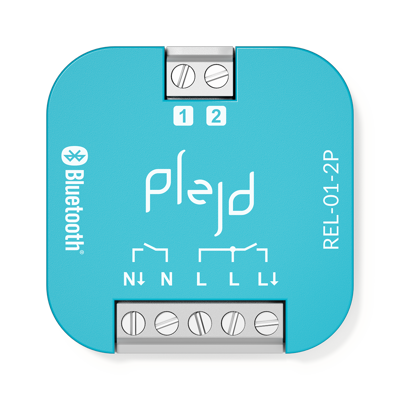

Plejd REL-01-2P Relay 2 -pole
Article No. |
311199 |
EAN |
7330018311199 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Relay 16 A is a relay with the option of 1- or 2-pole breaking and zero crossing switching/breaker protection.
It has two separate inputs for control using a push button, light switch, or motion sensor. The product can be controlled wirelessly via the app or through other products from Plejd. It can also be controlled automatically with built-in time functions such as timer and astronomical/weekly timers.
• Up to 16 A when breaking just the live (L) or 13 A when breaking 2-pole.
• Local control with two inputs via a momentary push button and/or an accessory from Plejd.
• Zero-crossing break/breaker protection.
• Time functions, such as timer and astronomical/weekly timers.
• Scenarios from phone, tablet, or push button.
Install the product in the appliance box behind the push button/box lid or secure it with a Mounting clip on the wall or DIN rail.
Files
Specifications
| MAINS ELECTRICITY | 230 V/50 Hz |
| STANDBY POWER | 0.3 W |
| EXTERNAL OPERATING TEMPERATURE | -25 to +35°C |
| DIMENSIONS | 46x46x18 mm |
| CABLE AREA | Connections: 0.5-4.0 mm2 |
| TYPE OF SWITCHING | Relay, Microgap (u) |
| PROTECTION | Overtemperature software, Zero-crossing break (breaker protection) |
| RADIO | 2.4 GHz mesh Bluetooth® |
| RADIO RANGE | Up to 10 m indoors. The Plejd mesh technology extends the range by allowing the units to communicate with each other. |
