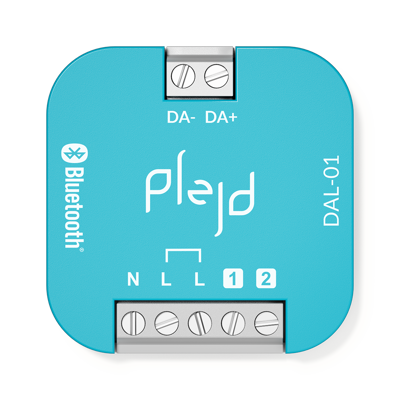

Plejd DAL-01
Article No. |
011495 |
EAN |
7330018011495 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
DAL-01 is used to control lighting products via DALI bus with broadcast. The product has a built-in PSU for powering the DALI bus for up to 64 loads, therefore no additional equipment is needed except for a DALI fixture or driver. The product is prepared for tunable white (Device Type 8 DT8) for color temperature control. The DALI broadcast dimmer has two separate inputs for control with spring-loaded push button, motion detector or wirelessly through other products. The product also has built-in time functions such as astro and weekly clocks.
Files
Specifications
| Dimming DALI | Yes |
| Depth | 18 mm |
| Frequency range | 50 Hz |
| Device height | 46 mm |
| Can be used with infrared button | No |
| Can be used with button | Yes |
| Can be used with motion sensor | Yes |
| Can be used with time switch/timer | Yes |
| Rated voltage | 230 V |
| Control current | 250 mA |
