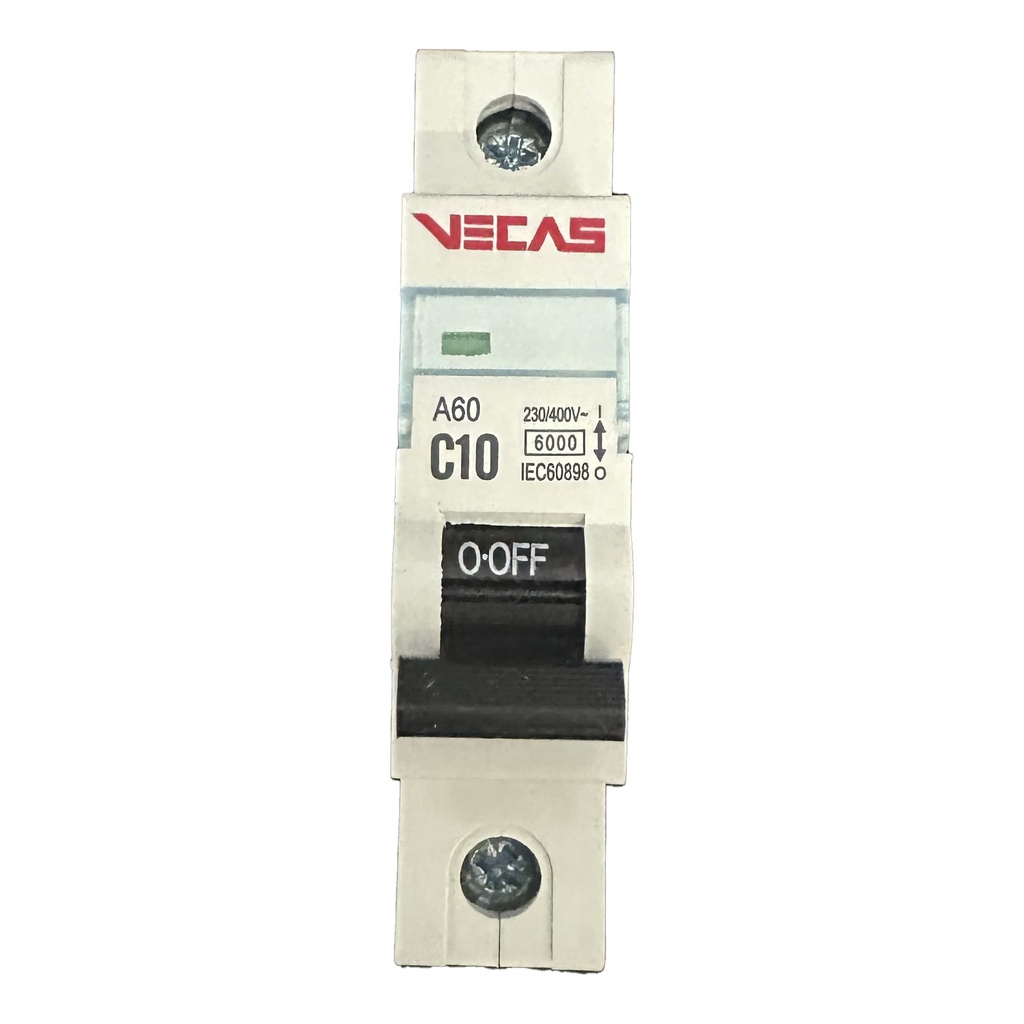

VECAS MCB 1P 10A C CURVE
Miniature circuit breaker for protection of person and property
Article No. |
030369 |
EAN |
7350143030369 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
VECAS MCB 10A
Vecas A60 series of standard products includes most of what is needed in standard installations for both industry and real estate. With a uniform appearance and a very assembly-friendly design provides a stylish and simple installation.
- Protection against both overload and short circuit
- High breaking capacity
- Contact position indication
- Applicable to terminal and pin/fork type busbar connection
- Mounted on DIN rail in standard enclosure.
Files
Specifications
| Rated voltage | AC 240/415V |
| Rated current (A) | 10 |
| Tripping curve | C |
| Rated breaking capacity (lcu) | 6000A |
| Rated frequency | 50/60Hz |
| Rated impulse withstand voltage | 6kV |
| Electro-mechanical endurance | 6000 |
| Connection | terminal Screw terminal, Pillar terminal with clamp |
| Connection capacity | Rigid conductor up to 25mm2 |
| Fastening torque | 2.5 Nm |
| Installation | On symmetrical DIN rail 35mm, Panel mounting |
