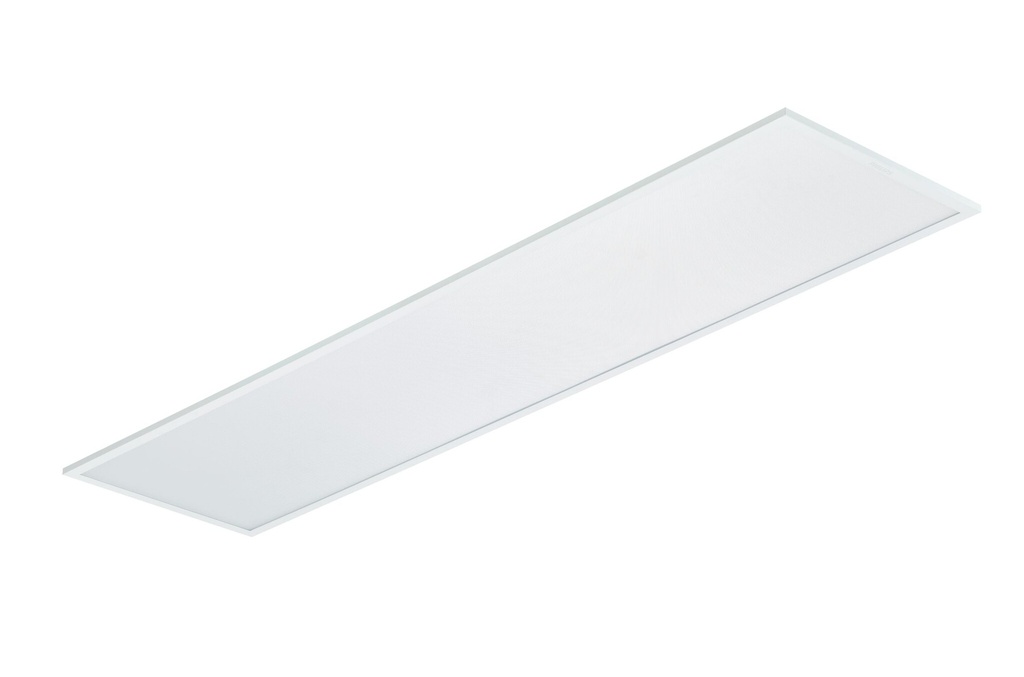

Ledinaire Panel, All-in, 28 W, 1200x300 mm, VPC, 3400 lm, Selectable, UGR19
Ledinaire Panel, All-in, 28 W, 1200x300 mm, VPC, 3400 lm, Selectable, UGR19
Article No. |
516984 |
EAN |
8720169516984 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
The Philips Ledinaire panel Gen5 (RC065B/RC066B) range features a selection of popular off-the-shelf LED luminaires that offer Philips high quality at a competitive price. Reliable, energy-efficient and affordable, this latest generation of 600 x 600 mm, 620 x 620 mm, 300 x 1200 mm, and 600 x 1200 Ledinaire LED panel lights are designed for diffuse, comfortable lighting in a wide range of general lighting applications. Our range of Ledinaire panels lighting is also available with accessories for easy installation on different types of ceilings—just what you need.
Files
- Localized_commercial_leaflet_911401877585_sv_SE.pdf
- Localized_commercial_leaflet_911401877585_sv_SE.pdf
- Localized_commercial_leaflet_911401877585_en_AA.pdf
- Localized_commercial_leaflet_911401877585_en_AA.pdf
- Localized_commercial_leaflet_911401877585_fi_FI.pdf
- Localized_commercial_leaflet_911401877585_fi_FI.pdf
- 911401877585_EU_da_DK_PROF_Product___full_data_sheet.pdf
- 911401877585_EU_da_DK_PROF_Product___full_data_sheet.pdf
Specifications
| Number of drive units | 1 unit |
| Operating device included | Yes |
| Value Ladder | Value |
| CE marking | Yes |
| Warranty period | 3 years |
| Safety marking, flammability | For mounting on normally flammable surfaces |
| ENEC marking | - |
| Glow wire test | Temperature 650 °C, duration 30 s |
| EU RoHS Compliant | Yes |
| Luminous flux | 3,400 lm |
| Correlated color temperature (nom) | Selectable |
| Light output (rated value) (nom) | 120 lm/W |
| Color rendering index | 80 |
| Flicker value (PstLM) | 1 |
| Light source dispersion angle | 90 ° |
| Light source color | 3000K/3500K/4000K |
| Optics type | 90° dispersion angle |
| Luminaire light beam distribution | 90° |
| Unified glare rating CEN | 19 |
| "All-in" Type | "All-in" Multi Color Temperature |
| Order Product Name | RC065B G5 34_36S/830_40 PSU 30x120 OC SC |
| Full product name | RC065B G5 34_36S/830_40 PSU 30x120 OC SC |
| Full EOC | 872016951698499 |
| Description of local code | 7027245 |
| Order number | 911401877585 |
| Material number (12NC) | 911401877585 |
| Local code | 7027245 |
| SAP Counters - Number per pack | 1 |
| EAN/UPC - Product/case | 8720169516984 |
| Counter - number of packages per carton | 4 |
| EAN/UPC - Case | 8720169517004 |
