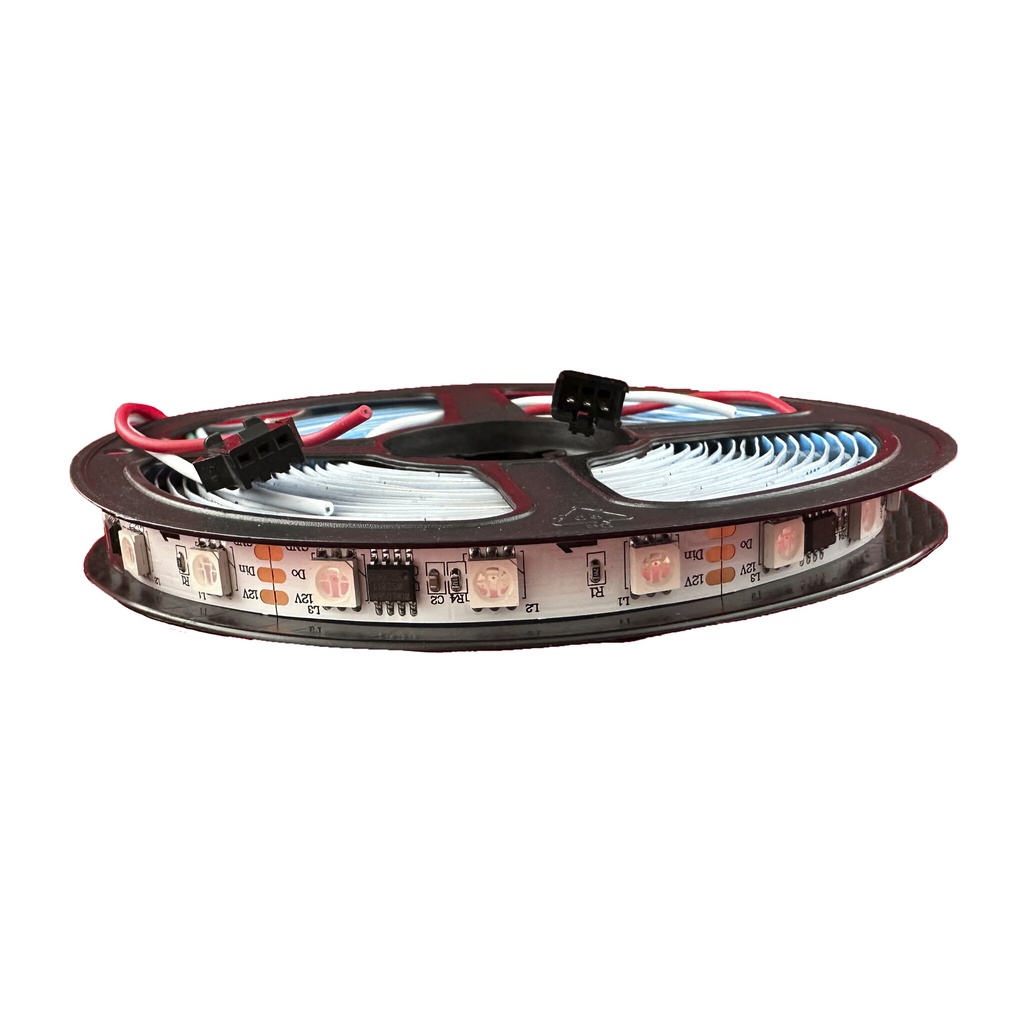

Led strip addressable RGB WS2811 60/m SMD5050 IP20
Article No. |
034183 |
EAN |
7350143034183 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
A simple addressable RGB LED strip. This means that you can display each LED color using an information signal. You can get these signals from several places, such as the digital pin on an Arduino board or a suitable SPI RGB LED controller.
Ledstrip IP20 60 pieces 5050 RGB LEDs per meter, 300 pieces 5 meters.
To connect to 230 Volt, a 12 Volt transformer is needed.
Compatible with Arduino, Raspberry Pi, T1000S, K1000C etc
Specifications
| PCB Size | 5000mm*10mm |
| Number of LEDs | 60 LEDs+20IC per meter |
| Control Mode | 3 LEDs Group control |
| Working voltage | 12V |
| Power | 14.4W/M |
| Lumen | 22-24LM per led |
| PCB Color | White |
| Viewing angle | 120 degrees |
| IP class | IP20 |
| Tape | self-adhesive tape on the back |
| Package | 5M/ROLL with anti-static bag |
| Certification | CE, ROHS, UL listed |
