Lågpris modell

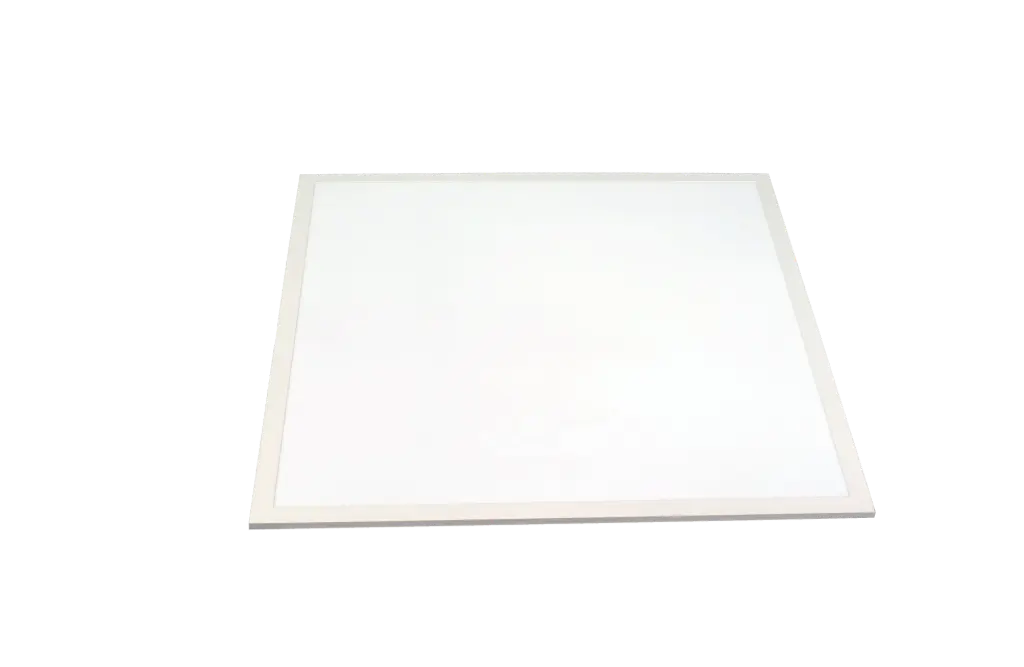

LED Panel back-lit 60x60 28W UGR19 140lm/w
7 sold in last 24 hours
This 60x60 Back-lit LED Panel is a high-performance 28W lighting solution delivering an impressive 140 lumens per watt
Article No. |
180783 |
EAN |
8720813180783 |
Tags |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
High-Efficiency 60x60 Backlit LED Panel
Elevate your commercial or educational space with our premium 60x60 back-lit LED panel. Using just 28W of power, this advanced light fixture offers an impressive luminous efficiency of 140lm/W, producing a bright 3920 lumens. The back-lit design ensures even light distribution, preventing yellowing over time. With a UGR rating below 19 and a 90-degree beam angle, it creates a comfortable, anti-glare environment that minimizes eye strain. Built with a durable aluminum heat-sink base, it lasts up to 50,000 hours and includes a 5-year warranty.
Smart Use Cases
- Corporate Offices: Install in standard drop ceilings for bright, flicker-free, and glare-free lighting (UGR under 19) that enhances focus and productivity.
- Educational Spaces: Ideal for schools, colleges, and universities that require bright, comfortable lighting for reading and focus.
- Hospitals and Healthcare: Provide clean, dependable, and energy-efficient lighting for corridors and waiting areas, featuring an IP41 rating for dust and object protection.
- Retail and Commercial Spaces: Elevate your product displays and store atmosphere with bright, uniform lighting available in a range of color temperatures from 3000K to 6000K.
Specifications
| Parameter | Value |
| Model | SRPL 60x60 - 28W - BL |
| Input Voltage | AC 200-240V |
| Power Consumption | 28W |
| Maximum Current | 0.2 Amps |
| Constant Current | 700 mA |
| Operating Voltage | DC 36V |
| Power Factor | ≥0.95 |
| LED Type | SMD 2835 |
| Number of LEDs | 48 PCS |
| Luminous Efficiency | 140 LM/W (4000K, 5000K, 6000K) / 130 LM/W (3000K) |
| Luminous Flux | 3920 LM ±10% (4K/5K/6K) / 3640 LM ±10% (3000K) |
| Beam Angle | 90° (UGR < 19) |
| Color Rendering Index (CRI) | ≥80 CRI |
| Dimming Settings | Optional 1-10V Dimming / TRIAC Dimming / DALI Dimming |
| Lifetime | 50,000 Hours of Use |
| Warranty | 5 Years |
| IP Rating | IP41 |
| Luminaires Class | Class 3 |
| Certifications | CE, RoHS Compliant |
| Operating Temperature | -20°F to +122°F |
| Storage Temperature | -30°F to +140°F |
| Operating Humidity | Humidity Range: 10-80% |
| Storage Humidity | 10-90% Humidity |
| Product Dimensions (L x W x H) | 23.4 x 23.4 x 1.4 in |
| Mounting Hole Size | 22.6 x 22.6 in |
| Net Weight (N.W) | 1,9 kg |
| Gross Weight (G.W) | 4,1 kg |
| Packing Dimensions (Single) | L645 x W95 x H645 mm |
| Outer Carton Packaging | 8 Pieces per Carton (4x2 Layers), K=K Corrugated Paper |
| Outer Carton Dimensions | L665 x W405 x H670 mm |
| Outer Carton Total Weight | 18 kg |
