LED Module 0,72W 4000K
Article No. |
157060 |
EAN |
5902135157060 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions

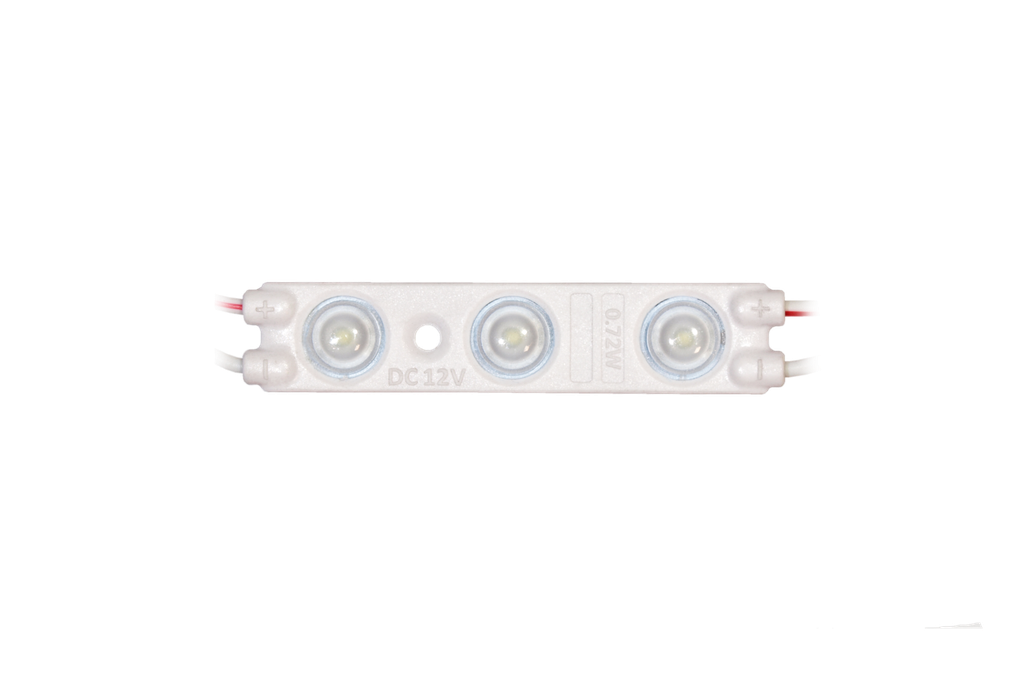

LED module with an output of 0.72W is a modern LED module with a wide range of applications, from lighting in the advertising industry to decorative lighting. The module has built-in SMD 2835 LEDs that emit cool white light with a maximum output of 69 lumens. The module is resistant to changing weather conditions, which makes it possible to install it outdoors. The high quality of components guarantees the tightness class IP67, which provides complete dust tightness and protection against immersion in water to a depth of 1 meter for a maximum of half an hour.
Please order packs of 160. (delivered 40 x 4 pcs)
Professional LED light module for light boxes, signs, etc. The LED module is very easy to place with pre-assembled double-sided adhesive tape.
The loop can be cut between each module.
Files
Specifications
| Voltage | 12 VDC |
| Power | 0,72 W |
| Current | 60 mA |
| Diodes type | 2835 |
| Color | 4000K |
| Flux | 69lm |
| Flux density | 95 lm/W |
| Beam angle | 160° |
| Lifetime | 50 000 hours |
| Length between modules | 110 mm |
| Wires color | White-red (+) White (-) |
| IP degree | IP 67 |
| Dimension | length, width, height 60,6 x 12,4 x 5,2 mm |
| Adhesive tape | Yes |
| Hole dimension | M3 |
| Material | ABS |
| Pcs per 1 meter | 7pcs |
| Chain q-ty | 40pcs |
| Package | 160pcs |
