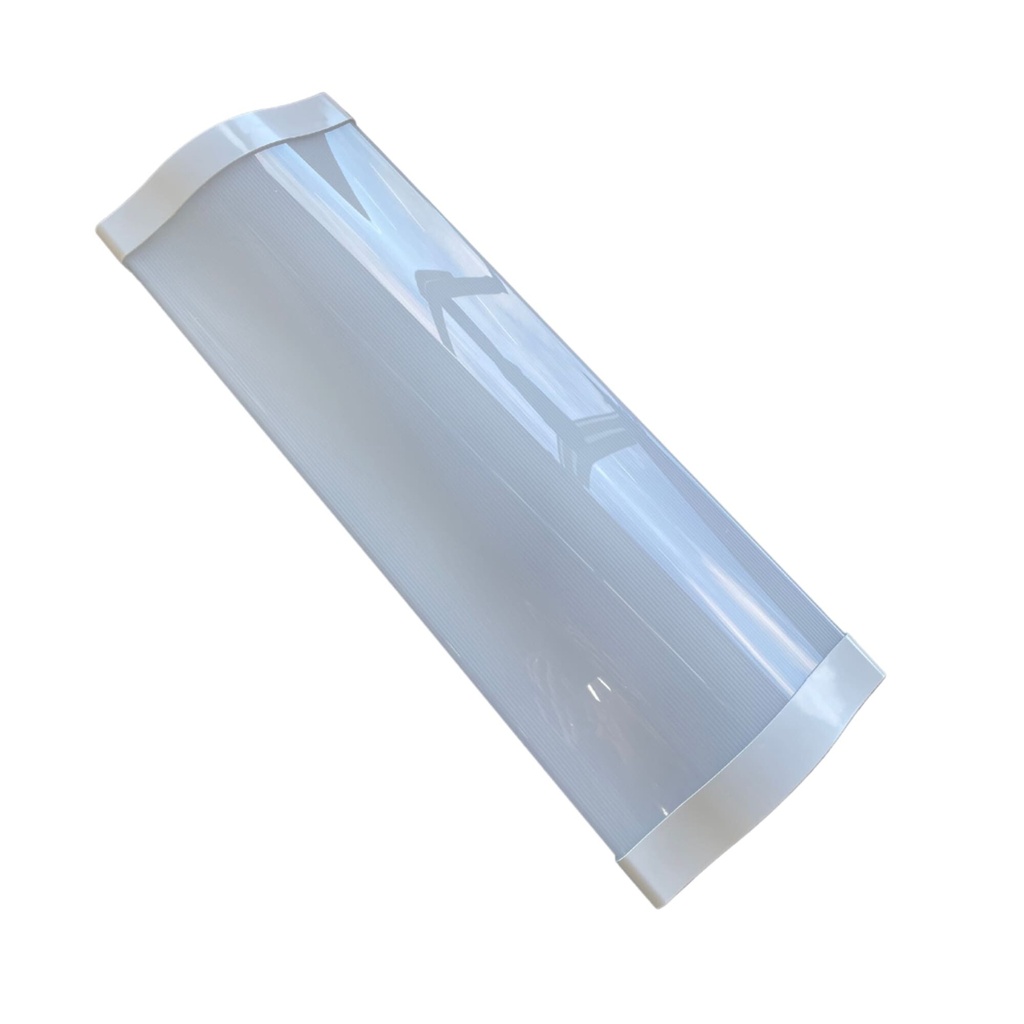

Freya sensor luminaire 60cm 17W 10-100 Dimmable 1-10V UGR>19 CCT
The ultimate universal luminaire, motion sensor with base lighting, CCT and dimming
Article No. |
030543 |
EAN |
7350143030543 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Versatile and energy-efficient lighting solution for businesses and homes. It is made of high-quality materials and components, and has an average lifespan of 50,000 hours.
Features:
- Base lighting 10 or 30%: The luminaire has an adjustable base lighting, which allows you to adjust the brightness according to your needs.
- Dimmable 1-10V: The fixture is dimmable with a 1-10V dimmer, which allows you to create a pleasant atmosphere. Dimming can only be used if basic lighting (stand by) and the sensor is disconnected.
- Micro-sensor: The fixture has a Microwave sensor that automatically switches the lamp on and off when someone is nearby. This helps save energy.
- Energy efficient: The fixture uses LEDs that are much more energy efficient than traditional light bulbs. This helps save money on your utility bills.
- Long service life: The luminaire has an average service life of 50,000 hours. This means you don't have to replace it as often as traditional light bulbs.
- CCT: Optional color temperature 3000K warm white, 4000K neutral white or 5000K cold white
Areas of use:
- Office: The luminaire is ideal for office environments as it is energy efficient and can be adapted to different needs.
- Shops: The fixture can be used in shops to create a pleasant atmosphere and improve visibility.
- Industrial facilities: The luminaire can be used in industrial facilities to ensure a safe and efficient working environment.
- Home: The fixture is a good choice for home as it is energy efficient and can be used in different rooms.
- Properties: Excellent choice for stairs, corridors and attic spaces
Advantages:
- Energy efficient: LED lights are much more energy efficient than traditional light bulbs. This means you can save money on your electricity bills.
- Long life: LED lamps have a long life of up to 50,000 hours. This means you don't need to replace them as often as traditional light bulbs.
- Autonomous lighting: The luminaire has a PIR sensor that automatically switches the lamp on and off when someone is nearby. This helps save energy.
- Dimmable: The fixture is dimmable with a 1-10V dimmer, which allows you to create a pleasant atmosphere.
Freya sensor luminaire with base lighting is a versatile and energy-efficient lighting solution that is perfect for businesses and homes. It is made of high-quality materials and components, and has a long service life.
Specifications
| Power | 17W |
| Lumen | 1870lm |
| Working Voltage | Constant DC36-42V |
| LED current | Constant: 50mA |
| Color Index | Ra>80 |
| Color Temperature | CCT 3000 - 4000 - 5000K |
| Dimming Function | 1-10V/10V PWM/Rx dimming+12V auxiliary power |
| Input Voltage | AC200~240V/50Hz |
| Housing material | SPCC + PC |
| Beam Angle | 120 degree |
| Energy efficiency Class | E |
| UGR | >19 |
| Protection Class | IP20 |
| Efficiency in | >93% |
| Power factor | >0.95 |
| Starting Time | <0.5S |
| Standard deviation of color matching | <5 |
| Warm-up time to 60% | <0.5S |
| Rated nominal Lifetime | >50,000 hours |
| Lumen Maintenance at e.o.l. | >80% |
| Temperature Operation | -15°C~+50°C, Storage:-25°C~+55°C |
| LED Device Lifetime | L80/B10@50,000 hours |
| Color fastness (McAdam ellipse) | Max. 6SDCM |
| Pst LM/SVM | <0.5 / <0.2 |
| Dimensions H x W x D | 600 x 215 x 77mm |
| Certificates | CE, RoHS |
| EAN | 7350143030543 |
| Driver specs | |
| Model | BK-CJL030-0800AM |
| Input voltage | 200-240VAC |
| Output power | 30.4W |
| Output voltage | 12-42V |
| Output current | 0.35-0.8A |
| PF | 0.95 |
| Efficiency | 88% |
| THD | 5% |
| Ta | 60°C |
| Tc | 90°C |
| Dimming | Support for 1-10V/10V PWM/Rx dimming+12V auxiliary power |
| Size | L*W*H: 245*30*21 |
| Sensor specs | |
| Size | L*W*H: 76.9*39.9*27.7MM |
| Operating temperature | -20°C~+55°C |
| Warranty | 5 years |
| Function setting | By 8 dial dip switch |
| IP grade | IP 20 |
| Control mode | ON/OFF /dimming(PWM) |
| Output | 5V PWM |
| Stand-by power | <=0.5W |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Operating voltage | 12-15V DC |
| Input current | 30mA(Max) |
| Detection coverage of DC sensor | |
| Mounting height | 2.5-4m (ceiling mounted) |
| Detection range | Radius,4-8m (ceiling mounted) |
| Detection angle | <=150°(Without glass) |
| Motion detection | 0.5~1.5m/s |
| Dip Switch settings | |
| Mode swapping | PWM |
| Detection area | 50%/100% |
| Setting mode | DIP switch |
| Hold time | 5s/30s/1min/5min |
| Daylight threshold | 2Lux/10Lux/50Lux/disable |
| Stand-by period | 0s/30s/5min/+? |
| Stand-by dimming level | 10%/30% |
