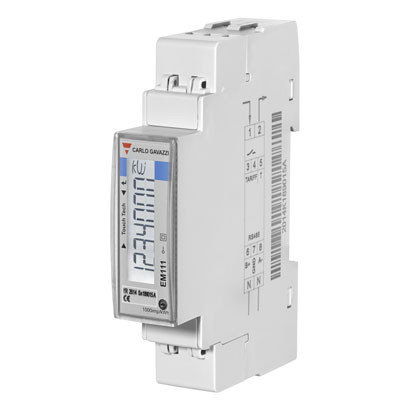

Energy meter for 1-phase (32A/230V) with pulse output. Approved for debit measurement.
Article No. |
081756 |
EAN |
8030956081756 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
EM111DINAV81XO1PFA
Energy meter for 1-phase (32A/230V) with pulse output. Approved for debit measurement. Only 1-module wide, energy meter for 1-phase systems measuring up to 32A.
Files
Specifications
| EAN code | 8030956081756 |
| Mounting | DIN rail |
| Type of system | 1-phase |
| Measuring principle | Direct |
| Current | 32 A |
| Rated current (In) | 5 A |
| Phase voltage | 230 VL-N |
| Type of energy measurement | Active energy and reactive energy |
| Accuracy Class | Class 1, Class B |
| Numbers in calculator | 8 |
| Energy type | Consumption |
| Billing | MID |
| Output | Pulse |
| Interface | Transistor |
| Maneuvering | Self-sufficient |
| Current measurement | Yes |
| Voltage measurement | Yes |
| Power factor | Yes |
| Active power measurement | Yes |
| Reactive power measurement | Yes |
| Frequency measurement | Yes |
| Width | 17.5 mm |
| Height | 90 mm |
| Depth | 63 mm |
| Number of modules | 1 |
| Protection class (IP) | IP51 |
