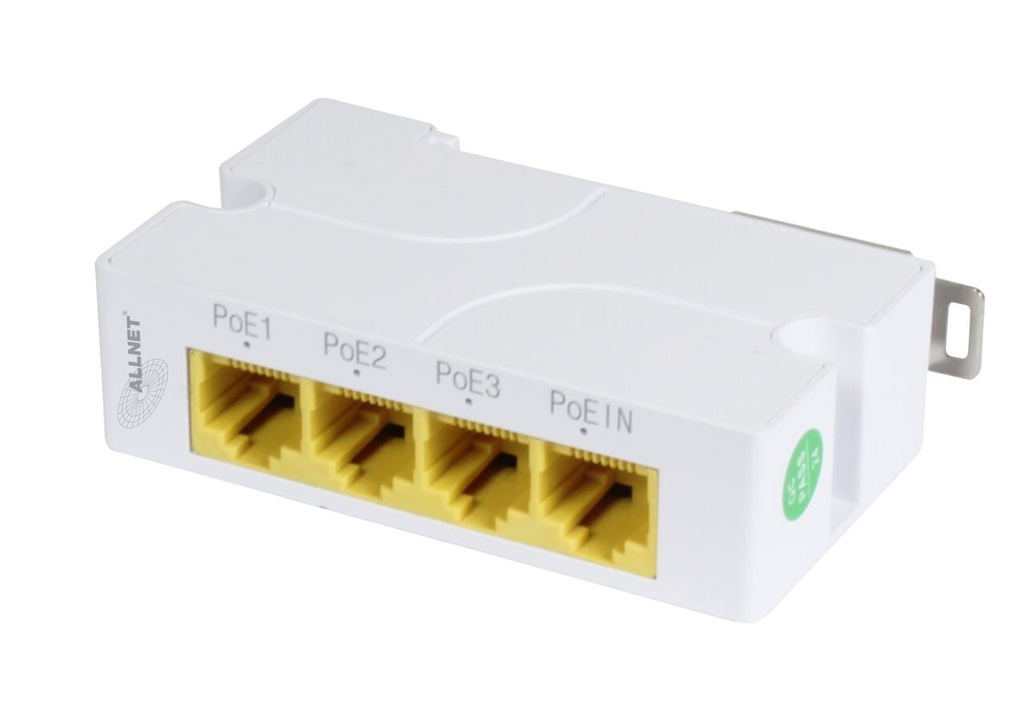

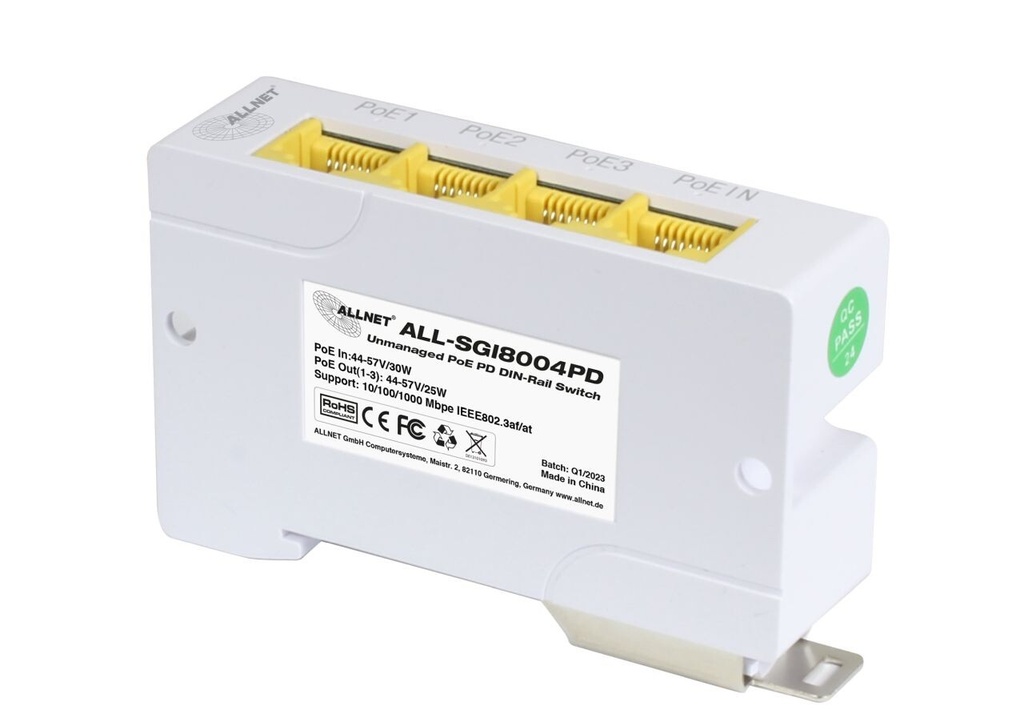

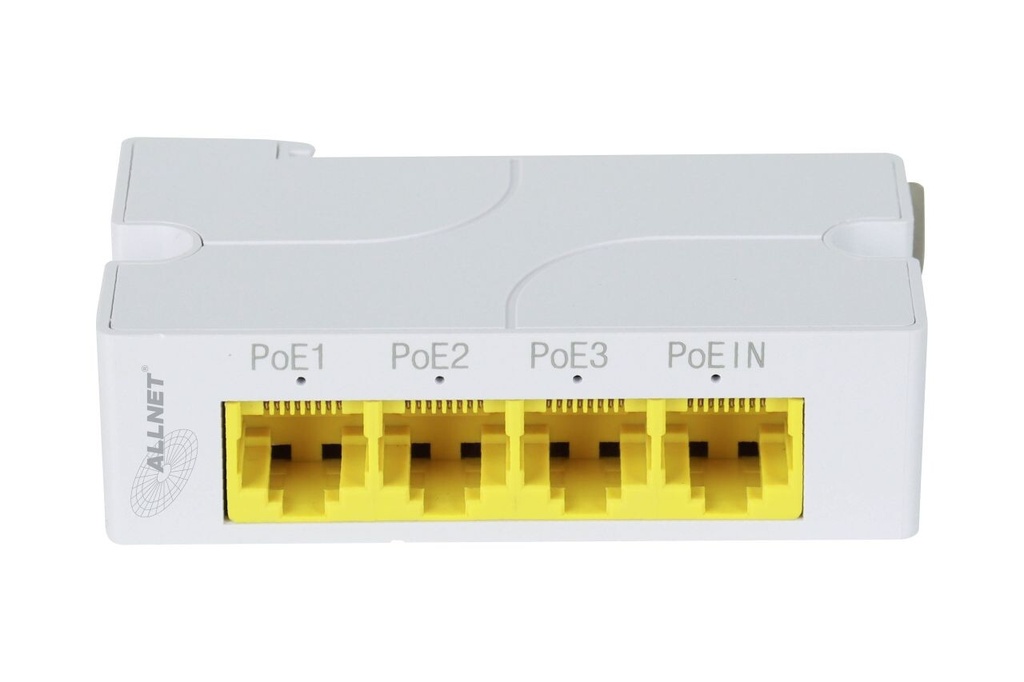

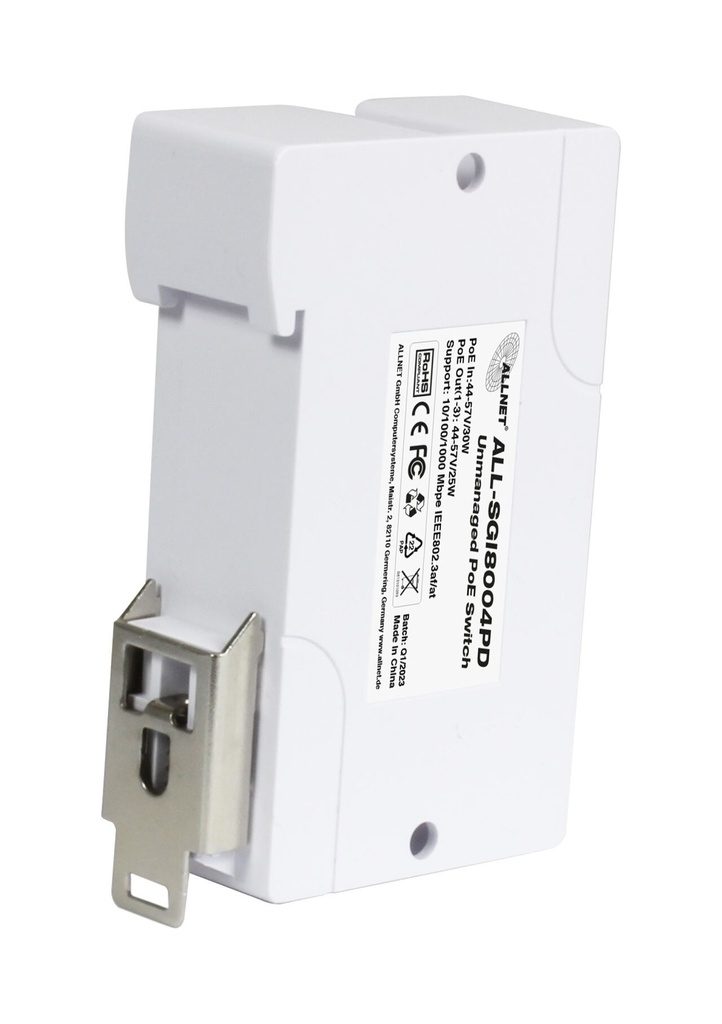

ALLNET Switch unmanaged Layer2 4 Port - 4x GbE - PoE 24W - 3x PoE AF - DIN, PD-Input
Article No. |
215680 |
EAN |
4038816215680 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
4-port unmanaged Layer 2 switch with Gigabit Ethernet ports and PoE (Power over Ethernet) support. It is designed for use in industrial and commercial environments, and can be mounted on a DIN rail.
The switch has three PoE AF ports, which can provide up to 15.4W of power to each connected device. This is enough power to power most PoE-powered devices, such as IP cameras, wireless access points, and VoIP phones.
The switch also has a PD-Input port, which allows the switch to be powered by another PoE device. This is useful for situations where the switch is installed in a location where AC power is not available.
The switch is unmanaged, which means that it does not have any configuration options. This makes it very easy to use and maintain.
Here are some of the key features of the ALLNET Switch:
- 4 Gigabit Ethernet ports
- 3 PoE AF ports (max 15,4W)
- PD-Input port (up to 30W)
- Unmanaged
- DIN rail mountable
The switch is ideal for use in a variety of applications, including:
- Industrial automation
- Security systems
- Building automation
- Transportation
- Retail
- Healthcare
- Education
It is also a good choice for small businesses and home offices that need a reliable and affordable PoE switch.
Files
Specifications
| Modell | ALL-SGI8004P |
| Produktname | ALLNET 4 Port PoE Extender |
| Network transmission medium 10Base-T | Cat5e or above UTP(<=100m) |
| 100Base-TX | Cat,5e or above UTP(<=100m) |
| 1000Base-TX | Cat,5e or above UTP(<=100m) |
| Ethernet | 3*10/100Mbps PoE Port+1*10/100/1000Mbps Ethernet Port |
| Transmission distance | Up to 1000ft(300m) per Extender, support 3 level cascading |
| Network protocol IEEE802.3 | IEEE802.3u, IEEE802.3x |
| PoE-Protokoll | IEEE802.3af (15,4W), IEEE802.3at (30W) |
| Backplane bandwidth | 1Gbps |
| POE-Pin | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) |
| Forwarding rate | 0.74Mpps |
| Operating temperature | -10~55°C |
| PoE power | Input Max 30W, Output Max 24W, Average 8W per port |
| PoE voltage | 44-57 Vdc |
| Product size | 82*52*23mm |
| Product weight | 55g |
| MAC | 1K |
| Certification | CE |
| EAN | 4038816215680 |
