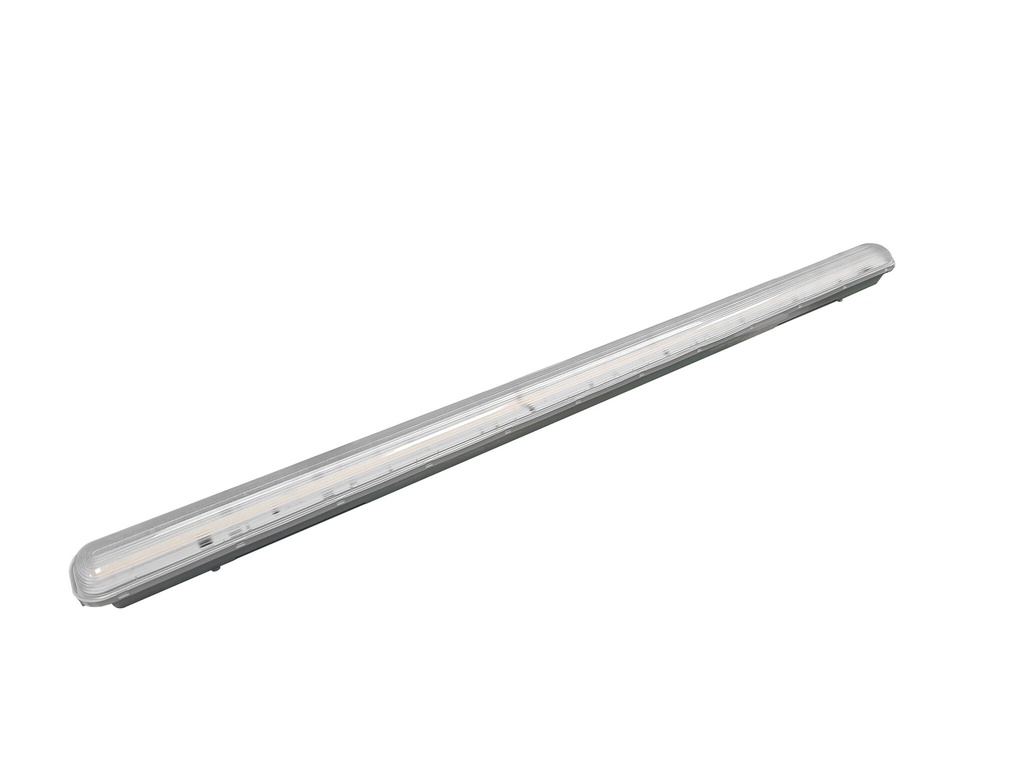

LED luminaire 120cm IP65 20-36W 4000K 190lm/W
Suitable for demanding conditions where high efficiency is required
Article No. |
930546 |
EAN |
8721225930546 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
LED armatur 120cm IP65 20-36W 4000K 190lm/W – driftssikker belysning til garage, lager og erhverv.
Specifications
| Electrical Parameters | |
| Input Voltage | AC200-240V |
| Max. Current | 0.15A |
| Operating Voltage | DC99V |
| Constant Current | 0.35A (Adjustable: 0.35A - 36W, 0.3A - 30W, 0.25A - 24W, 0.2A - 20W) |
| Power Consumption | 36W |
| Power Factor | >=0.95 |
| Light Output & LED Characteristics | |
| LED Type | SMD2835 |
| LED Quantity | 132 PCS |
| CRI (Color Rendering Index) | >=80Ra |
| CCT (Correlated Color Temperature) | 2900-3100K (Warm White), 4000-4500K (Neutral White), 5500-6000K (Cool White) |
| Luminous Flux | 6480LM±10% (Warm White), 6840LM±10% (Neutral White/Cool White) |
| Luminous Efficiency | 180LM/W (Warm White), 190LM/W (Neutral White/Cool White) |
| Beam Angle | 105° |
| Optional Dimming | 0-10V Dimming |
| Physical Characteristics | |
| Dimensions | L1200 * W68 * H65mm |
| Weight | 1.28Kg (Net Weight), 1.48Kg (Gross Weight) |
| Environmental & Operational Conditions | |
| Life Time | 50,000 Hours |
| Operating Temperature | -20°C to +50°C |
| IP Code | IP65 |
| Humidity Operating | 10-80%RH |
| Luminaires Class | ClassI |
| Storage Temperature | -30°C to +60°C |
| Humidity Storage | 10-90%RH |
| Packaging | |
| Outer Carton Package | 9 pcs/carton (1 layer), K=K corrugated paper, L1245 * W250 * H250mm, Gross Weight: 14.15KG |
| Individual Packaging Dimensions | L1230 * W77 * H77mm |
| Certifications | CE, RoHS |
| EAN | 8721225930546 |
