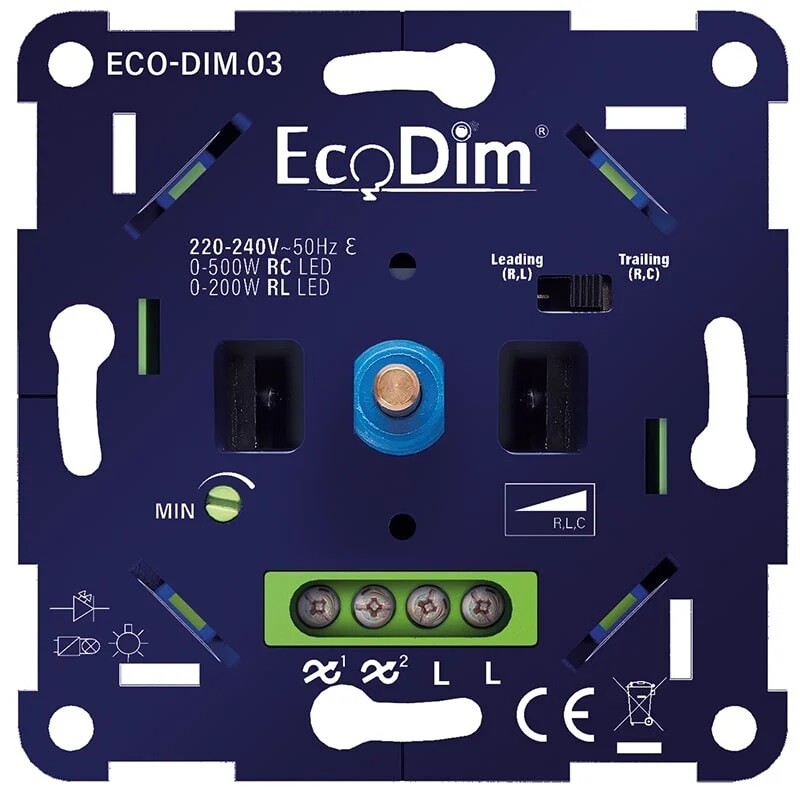

LED dimmer EcoDim ECO-DIM.03 0-500W (200W)

Create atmospheric lighting, save energy and enjoy a smooth user experience with this compact and innovative LED dimmer. ECO-DIM is specially designed to work perfectly with Efapel Logus cover plates and frames. The dimmer gives you complete control over your lighting.

• 0-500 Watt LED RC / 0-200 Watt LED RL
• Universal: leading edge / trailing edge (RLC)
• Suitable for all A-brands of cover material
• Optimal dimmability & light stability
• Overload protection & interference signal protection
• Manual MIN adjustment & automatic MAX detection
• Silent dimming
• Soft-start system
• Small mounting depth
• Suitable for two-way switching & cross switching
• Daisy chain connection possible (double L-port)
• Suitable for all dimmable LED lamps
• Supplied with fittings

Suitable brands of cover material:

• Efapel
• Berker by Hager
• Busch-Jaeger (except 6540-7X)
• Gira
• JUNG
• Kopp
• Merten by Schneider 51XX and System M
• Niko XXX-31003 (provided use of Niko adapter) and XXX-31000
• PEHA

Not suitable:

• Busch-Jaeger 6540-7
• Merten D-Life
• Niko PR20
• Dimmer knob with D-shaped hole, like Wintop, Plieger, GAMMA Everest

Suitable lamps:

• Led lamps 230V (max. 500W)
• Incandescent lamps (max. 400W)
• Halogen lamps 230V (max. 400W)
• Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 400W)
