Shelly Qubino Wave PM Mini
Article No. |
269152 |
EAN |
3800235269152 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions

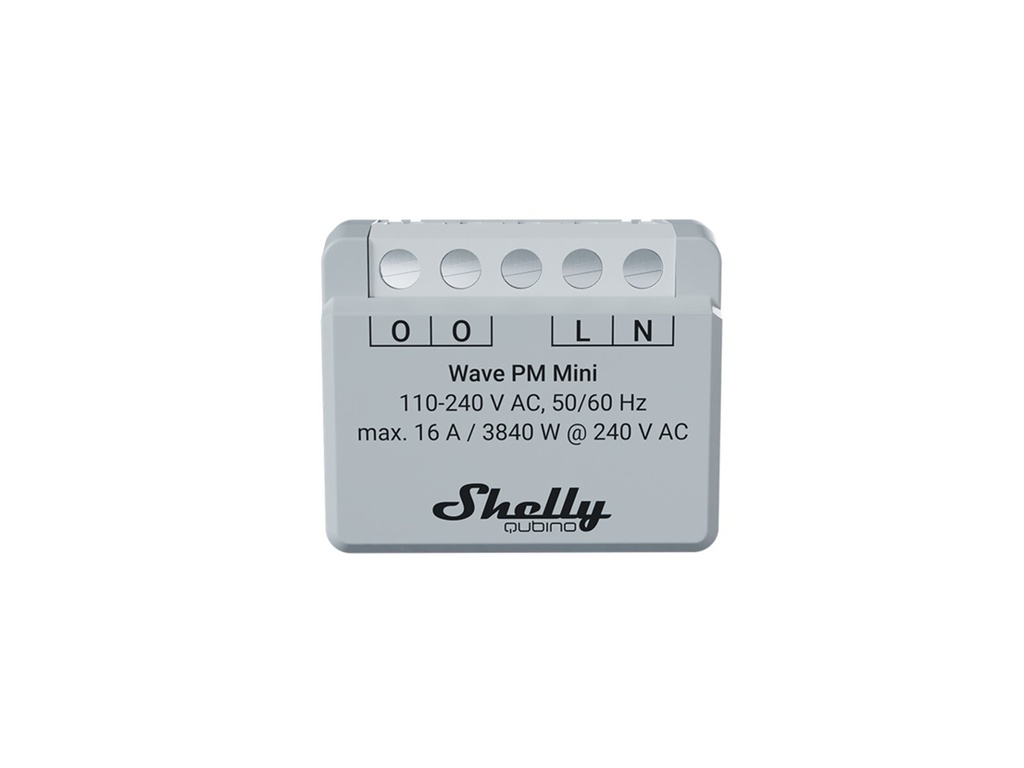

Shelly Qubino Wave PM Mini
The Shelly Qubino Wave PM Mini is an extremely compact power meter (PM = Power Metering) without a built-in relay, which allows for installation behind the wall outlet for your freezer, refrigerator, washing machine, dryer, or other 230V load to get a detailed overview of the devices' consumption without the risk of accidentally turning off, for example, the refrigerator or freezer. Thanks to its very compact design, the device can be installed in most wall and ceiling boxes.
The Shelly Qubino Wave PM Mini is easily configured and controlled via the Shelly Cloud with the Shelly Qubino Z-Wave gateway or through your preferred Z-Wave platform such as Fibaro, Homey, Home Assistant, or any other.
The advantages of using Z-Wave technology include:
- Very low standby power consumption: 0.3 W.
- Uses the latest technology: Z-Wave 800 Series.
- Z-Wave frequency: 868.4 MHz (no interference with WiFi).
- Automatic configuration with SmartStart.
- Security 2 Authenticated for the highest level of security.
- Support for over-the-air firmware updates (OTA).
- Compatible with Z-Wave certified gateways and more than 4,000 Z-Wave devices.
Using Z-Wave smart home devices enables collaboration across manufacturer boundaries thanks to the centralized gateway and the well-proven protocol.
Links
Technical documentation: https://kb.shelly.cloud/knowledge-base/wave-pm-mini
Files
Specifications
| Power | |
| Power Supply | 110 - 240 V AC, 50/60 Hz |
| Power Consumption | < 0.3 W |
| Power Measurement | Yes |
| Max. Measurement Power | 3840 W |
| Max. Measurement Current | 16 A |
| Overheating Protection | Yes |
| External Protection | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Connectivity & Control | |
| Range | Up to 40 m (131 ft) indoors (depending on local conditions) |
| Z-Wave Repeater | Yes |
| Z-Wave Chip | Z-Wave S800 |
| Z-Wave Frequency | 868.4 MHz |
| Maximum RF Power | < 25 mW |
| Physical Characteristics | |
| Dimensions (HxWxD) | 29 x 35 x 16 mm (1.11 x 1.35 x 0.63 in) ± 0.5 mm / 0.02 in |
| Weight | 13 ± 1 g (0.46 ± 0.04 oz) |
| Mounting | Wall box |
| Shell Material | Plastic |
| Color | Light grey |
| Screw Terminal Torque | 0.4 Nm (3.54 lbin) |
| Conductor Cross-Section | 0.5 to 1.5 mm² (20 to 16 AWG) |
| Conductor Stripped Length | 5 to 6 mm (0.20 to 0.24 in) |
| Environmental Conditions | |
| Ambient Temperature | -20°C to 40°C (-5°F to 105°F) |
| Humidity | 30% to 70% RH |
| Max. Altitude | 2000 m (6562 ft) |
| EAN | 3800235269152 |
