Shelly Qubino Wave Pro 1
Article No. |
269091 |
EAN |
3800235269091 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions

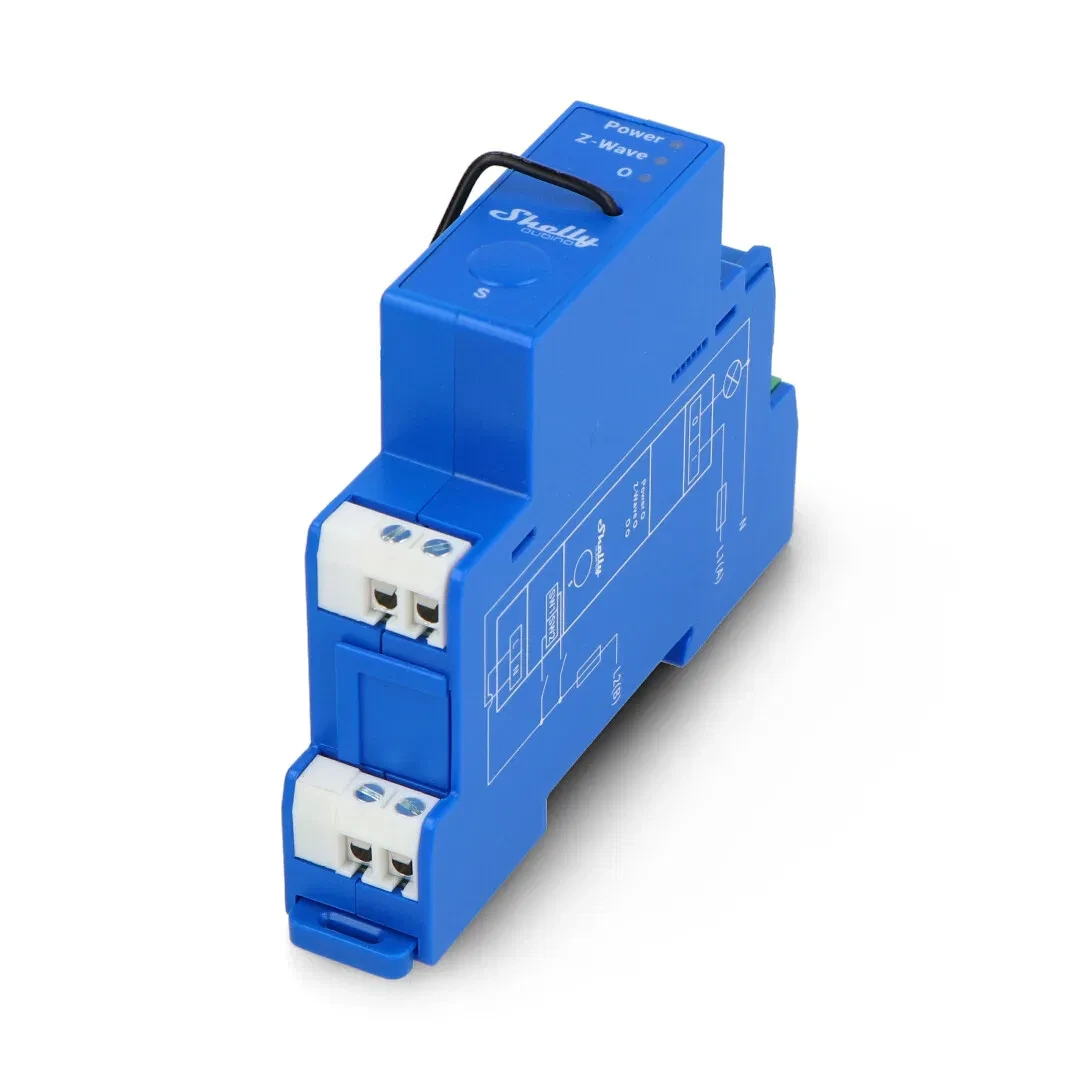

Shelly Qubino Wave Pro 1
The Shelly Qubino Wave Pro 1 is a Z-Wave controlled 1-channel 16A relay with a potential-free contact set for DIN rail mounting and offers easy control and automation of lighting, heating, fans, pumps, and much more. The Wave Pro 1 can be easily set up and controlled via the Shelly Cloud with the Shelly Qubino Z-Wave gateway or through your preferred Z-Wave platform, such as Fibaro, Homey, Home Assistant, or any other.
Function
The Shelly Qubino Wave Pro 1 has many uses. It can be supplied with 110-240 VAC. With a potential-free contact set, it is less sensitive to inductive loads than devices with power metering (PM models). The Wave Pro 1 has two switch inputs that are optional to use. This makes the device useful for many purposes, such as:
- Lighting control
- Control of fans
- Control of heat sources
- Pump control
- Control of larger loads with contactors
There are several advantages to using Z-Wave technology, including:
- Very low standby power consumption: 0.3 W.
- Latest technology: Z-Wave 800 Series.
- Z-Wave frequency: 868.4 MHz (no interference with WiFi).
- Automatic configuration with SmartStart.
- Security 2 Authenticated offers the highest level of security.
- Support for over-the-air firmware updates (OTA).
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices.
By using Z-Wave smart home devices, the devices can work together across manufacturers thanks to the centralized gateway and the well-tested protocol.
Links
Technical documentation: https://kb.shelly.cloud/knowledge-base/wave-pro-1
Files
Specifications
| Power | |
| Power Supply | 110 - 240 V AC, 50/60 Hz |
| Power Consumption | < 0.3 W |
| Max. Switching Voltage AC | 240 V |
| Max. Switching Current AC | 16 A |
| Max. Switching Voltage DC | N/A |
| Max. Switching Current DC | N/A |
| Overheating Protection | Yes |
| Power Measurement | No |
| Connectivity & Control | |
| Range | Up to 40 m (131 ft) indoors (depending on local conditions) |
| Z-Wave Repeater | Yes |
| Z-Wave Chip | Z-Wave S800 |
| Z-Wave Frequency | 868.4 MHz |
| Maximum RF Power | < 25 mW |
| Physical Characteristics | |
| Dimensions (HxWxD) | 94 x 19 x 69 mm (3.70 x 0.75 x 2.71 in) ± 0.5 mm / 0.02 in |
| Weight | 60 g (2.12 oz) |
| Mounting | DIN rail |
| Shell Material | Plastic |
| Color | Blue |
| Screw Terminal Torque | 0.4 Nm (3.54 lbin) |
| Conductor Cross-Section | |
| Green Connector | 0.5 to 2.5 mm² (20 to 14 AWG) |
| White Connectors | 0.5 to 1.5 mm² (20 to 16 AWG) |
| Conductor Stripped Length | |
| Green Connector | 6 to 7 mm (0.24 to 0.28 in) |
| White Connectors | 5 to 6 mm (0.20 to 0.24 in) |
| Environmental Conditions | |
| Ambient Temperature | -20°C to 40°C (-5°F to 105°F) |
| Humidity | 30% to 70% RH |
| Max. Altitude | 2000 m (6562 ft) |
| EAN | 3800235269091 |
