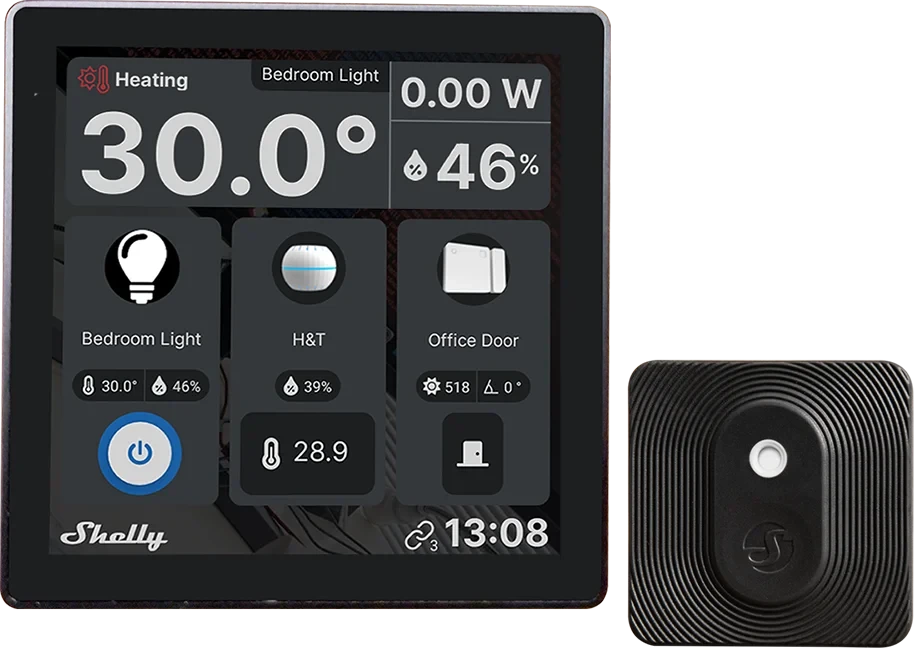

Shelly Wall Display Black+BLU H&T Black
Article No. |
264904 |
EAN |
3800235264904 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly Wall Display - Smart Home Control Panel
Shelly Wall Display is a 4-inch Android-based touchscreen that provides easy control of your home or office. With a minimalist design, sleek user interface, and customizable home screen, Shelly Wall Display will not only fit perfectly into your interior but can also be adapted to the needs of the room.
Key Features
- Control of Shelly devices and other smart home systems
- Integrated sensors for temperature, humidity, and light
- Energy measurement and monitoring
- Customizable home screen
- Thermostat function
- Bluetooth gateway
- High security and stability
Applications
- Control lighting, heating, and other devices
- Create custom scenes and automations
- Monitor home climate and energy consumption
- Integrate with other smart home systems
Shelly Wall Display is easily installed in a standard wall box and can be connected to your Wi-Fi network. With Shelly Wall Display, you get a central place to control and monitor your smart home.
Technical information
For more detailed technical information, visit Shelly's website.
Important: This product has been replaced by a newer model that includes a Shelly BLU H&T temperature and humidity sensor.
Files
Specifications
| Dimensions (HxWxD) | 85x85x30 mm / 3.35x3.35x1.18 in |
| Weight | 180 g / 6.35 oz |
| Screw Terminals Max Torque | 0.4 Nm / 4.43 lbin |
| Conductor Cross Section | 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor Stripped Length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall box |
| Shell Material | Plastic, aluminum, glass |
| Shell Color | Black or white |
| Ambient Working Temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft |
| Power Supply | 230 VAC, 50/60Hz |
| Power Consumption | < 1 W |
| Max. Switching Voltage | 230 VAC |
| Max. Switching Current | 5 A |
| Internal-temperature sensor | No |
| Ambient temperature sensor | Yes |
| Humidity sensor | Yes |
| Light sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| RF Band | 2401 - 2495 ?Hz |
| Max. RF Power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol | 4.2 |
| RF Band | 2400 - 2483.5 MHz |
| Max. RF Power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| CPU | MTK6580 |
| RAM | 1 GB |
| Flash | 8 GB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 2 URLs per hook |
| Scripting | No |
| MQTT | Yes |
| EAN | 3800235264904 |
