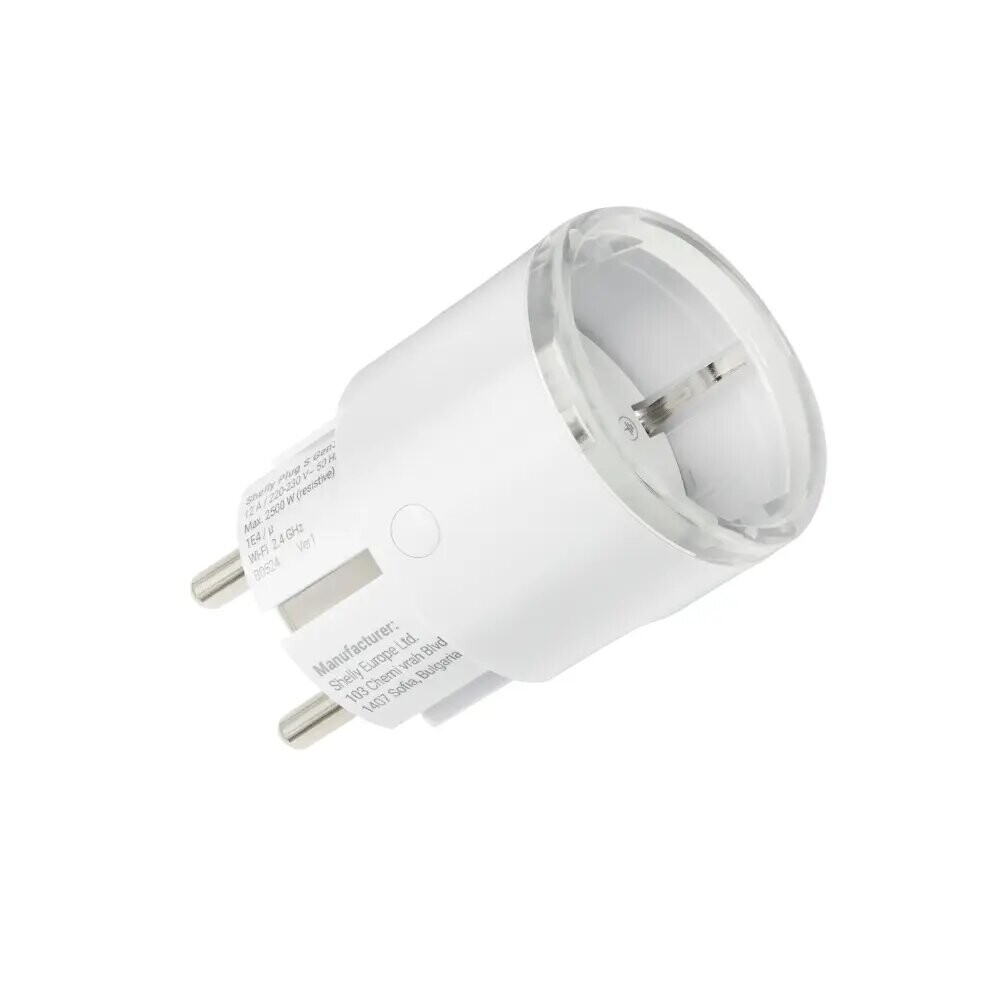

Shelly Plug S Gen3, white - Matter
Shelly Plug S Gen3, white - Matter - WiFi smart plug, 12A
Article No. |
261842 |
EAN |
3800235261842 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly Plug S Gen3, hvid - Matter – praktisk tilbehør til dit Shelly smart home-system.
Files
Specifications
| Dimensions (HxWxD) | 44x44x70 ±0.5 mm / 1.73x1.73x2.75 ±0.02 in |
| Weight | 60 ±1 g / 2.08 ±0.04 oz |
| Compatible Sockets | CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E) |
| Compatible Plugs | CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17 |
| Shell Material | Plastic |
| Shell Color | White or Black |
| Ambient Temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft |
| Glow-wire Temperature | 750°C |
| Required Forced Cooling | No |
| Power Supply | 220-230 V~ 50/60 Hz |
| Power Consumption | < 1 W |
| Rated Impulse-withstand Voltage | 2500 V |
| Max. Switching Voltage | 230 V~ |
| Max. Switching Current | 12 A |
| Max. Output Power | 2500 W (resistive load only) |
| Number of Switching Cycles | 10000 |
| Switch Type | One-way |
| Switch Configuration | SPNO (single-pole, normally-open) |
| Type of Circuit Disconnection | Micro |
| Internal-temperature sensor | Yes |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Power and energy meters | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| RF Band | 2401-2473 MHz |
| Max. RF Power | < 10 dBm |
| Range | Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions) |
| Bluetooth Protocol | 4.2 |
| RF Band | 2400 - 2483.5 MHz |
| Max. RF Power | < 4 dBm |
| Range | Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| CoAP | No |
| EAN | 3800235261842 |
