Shelly PM Mini Gen3 x2

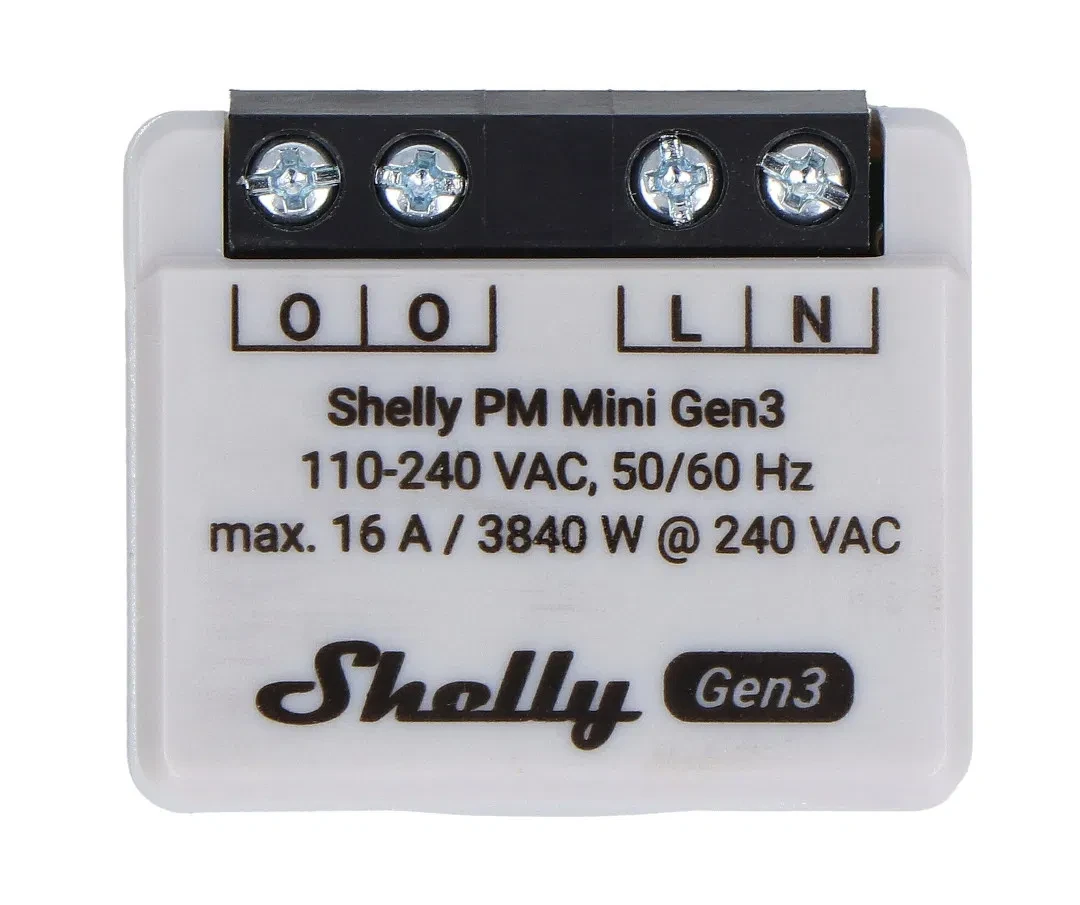

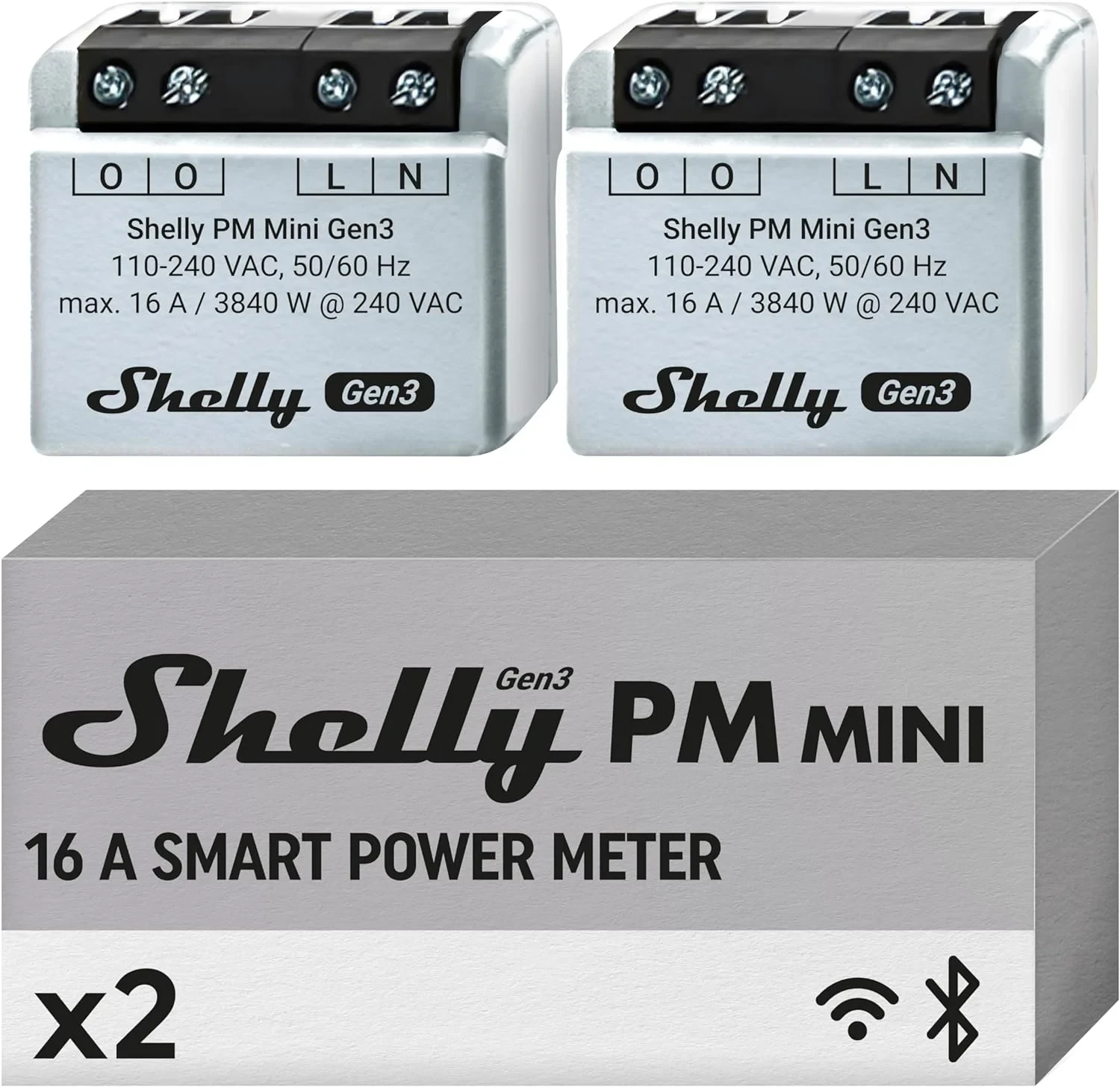

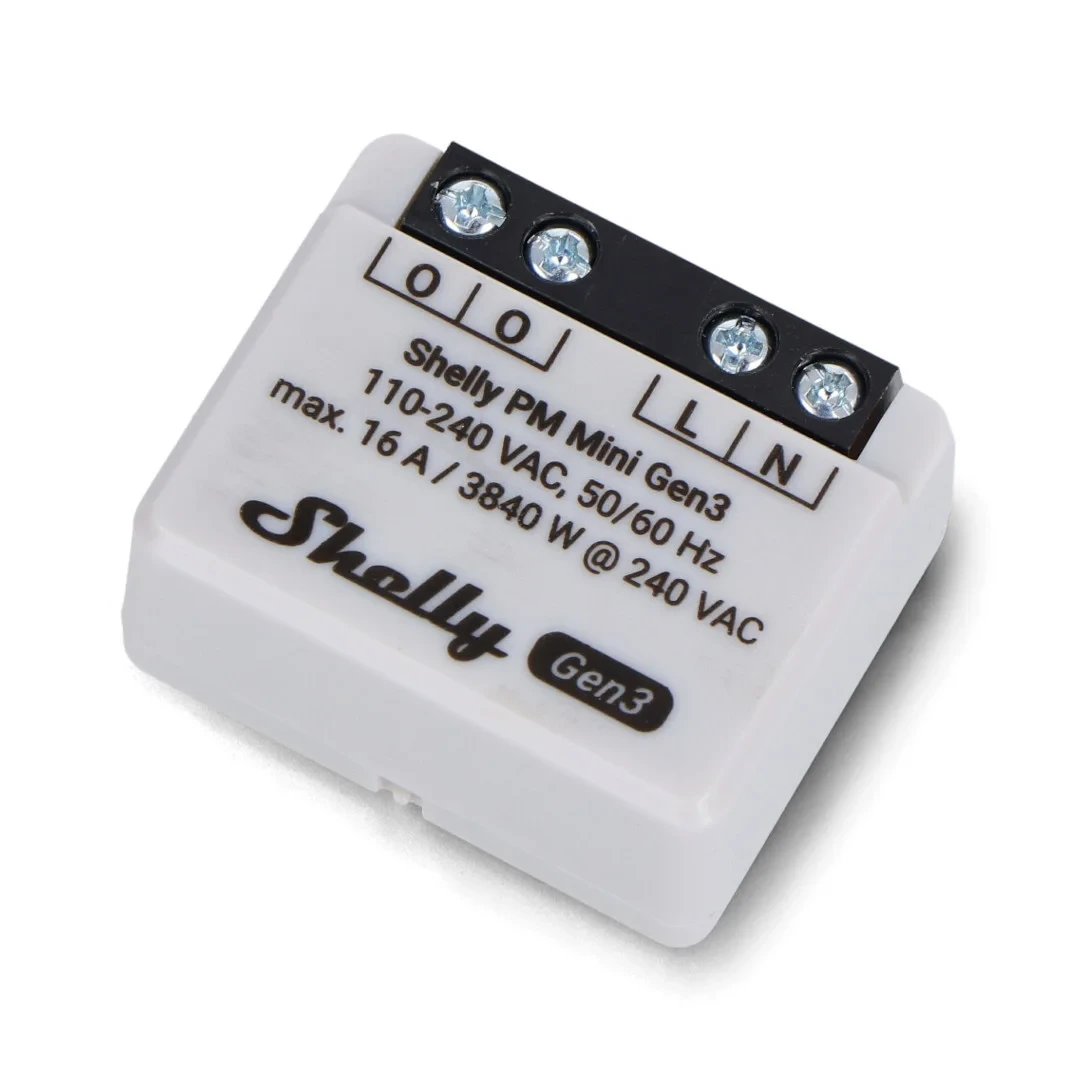

Shelly PM Mini Gen3 (2-pack) - WiFi power meter without relay (110-240VAC)
Article No. |
261620 |
EAN |
3800235261620 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly Plus 1PM Mini - Compact Smart Energy Meter
Shelly Plus 1PM Mini is probably the world's smallest WiFi-controlled 1-channel power meter. It's perfect for measuring the energy consumption of lights, outlets, and other small electrical appliances. Thanks to its compact design, it fits in most wall boxes.
Key Features
- Energy monitoring: Monitor your energy consumption in real time.
- Compatibility: Works with most smart home systems.
- Compact design: Fits in most wall boxes.
Applications
- Small pumps
- Fans
- Energy consumption monitoring
Shelly Plus 1PM Mini can be connected to your Wi-Fi network and controlled via the Shelly Smart Control app or your preferred smart home platform. With Shelly Plus 1PM Mini, you can create a more comfortable and energy-efficient home.
Technical information
For more detailed technical information, visit:
https://kb.shelly.cloud/knowledge-base/shelly-plus-1pm-mini
Specifications
| Dimensions (HxWxD) | 29x34x16 / 1.34x1.11x0.63 in |
| Weight | 13 g / 0.46 oz |
| Screw Terminals Max Torque | 0.4 Nm / 3.5 lbin |
| Conductor Cross Section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor Stripped Length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall box |
| Shell Material | Plastic |
| Shell Color | Light gray, C: 0%; M: 0%; Y: 0%; K: 20% |
| Terminal Color | Black |
| Ambient Working Temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft |
| Glow-wire Temperature | 750°C |
| Power Supply | 110 - 240 VAC |
| Power Consumption | < 1.2 W |
| External Protection | Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3 |
| Power Measurement | Yes |
| Max. Measurement Voltage | 240 VAC |
| Max. Measurement Current | 16 A |
| Max. Measurement Power | 3840 W |
| Wi-Fi Protocol | 802.11 b/g/n |
| RF Band | 2401 - 2495 ?Hz |
| Max. RF Power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol | 4.2 |
| RF Band | 2400 - 2483.5 MHz |
| Max. RF Power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| UDP | Yes |
| Advanced schedules | Yes |
| KVS (Key-Value Store) | Yes |
| EAN | 3800235261620 |
