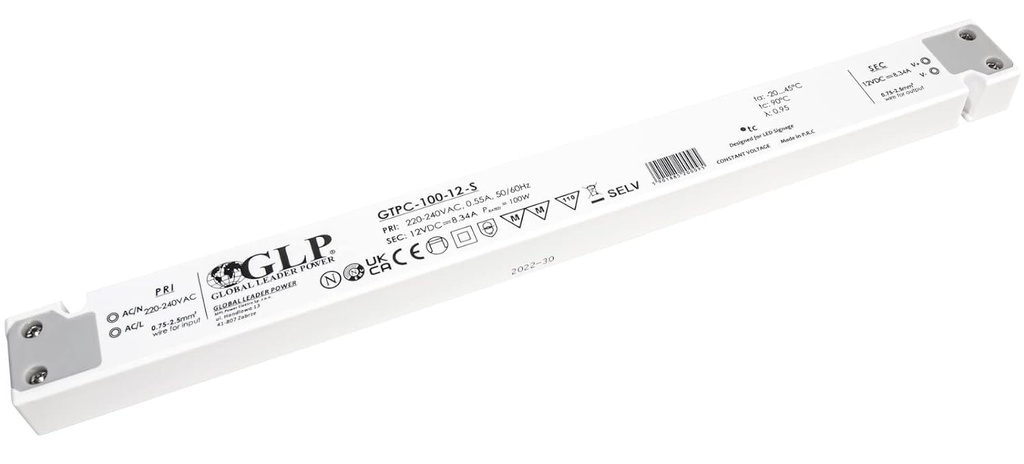

Transformer 12V constant voltage Slim 100W
100W LED Constant voltage Switching Power Supply
Article No. |
200088 |
EAN |
5901885200088 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Power adapter used to convert 230V AC power from the wall socket to 12V DC power used by LED lighting and other electronic devices. It has a compact and slim design, which makes it ideal for installation in tight spaces.
Advantages:
- Compact and slim design: It takes up minimal space and is easy to install.
- High efficiency: It converts power efficiently and wastes minimal energy.
- Safety features: It has short circuit protection and overload protection to ensure safe use.
- Long life: It has a long life and does not need to be replaced frequently.
Areas of use:
- LED lighting: It is used to power LED strips, LED modules and other LED lights.
- Other 12V DC devices: It can be used to power devices that require 12V DC power, e.g. routers, modems and surveillance cameras.
Files
Specifications
| Rated Voltage | 12V |
| Rated Current | 8,34A |
| Rated Power | 100W |
| Power Range | 0 ÷ 100W |
| Line Reglation | ± 5% |
| Load Reglation | ± 5% |
| Voltage Tolerance | ± 5% |
| Ripple & Noise (max.) | 500mVP-P |
| Setup, Rise, Holdup time | 500ms / 230VAC at full load |
| Voltage Range | 180 ÷ 264VAC |
| Frequency Range | 47/63Hz |
| Efiiciency (typ.) | 91% |
| AC Current (typ.) | 0.55A / 230VAC |
| Inrush Current (typ.) | 50A / 230VAC; TWIDTH (50% peak) = 300us |
| Overload Range | 120-180% rated power Type hiccup mode, auto-recovery. |
| Short Circuit | Type hiccup mode, auto-recovery. |
| Over Voltage | Range: 17-22V Type hiccup mode, auto-recovery. |
| Working Temperature | -20°C ÷ 45°C, ta 50°C; tc 90°C |
| Working Humidity | 20 ÷ 90% RH non-condensing |
| Storage Temperature and Humidity | -20°C ÷ 70°C, 10 ÷ 95% RH non-condensing |
| Safety Standards | Compliance to EN 61347-1, EN 61347-2-13, EN 60598-1 |
| Withstand Voltage | IN/OUT 3.75kVAC |
| Isolation Resistance | IN/OUT 100M?/500VDC/25°C/70% |
| EMC Emission | Compliance to EN 55015, EN 62493 |
| EMC Immunity | Compliance to EN 61547 |
| Harmonic Current | Compliance to EN 61000-3-3; EN 61000-3-2 |
| Lifetime (typ.) | 35 000 hours / Input 230VAC, ta=45°C at full load |
| Dimensions | 320 x 30 x 18,2mm (L x W x H) |
| Weight and Packing | 170g; 100pcs./ctn; ctn weight and dimensions: 17kg; 40 x 34 x 23cm |
| EAN | 5901885200088 |
