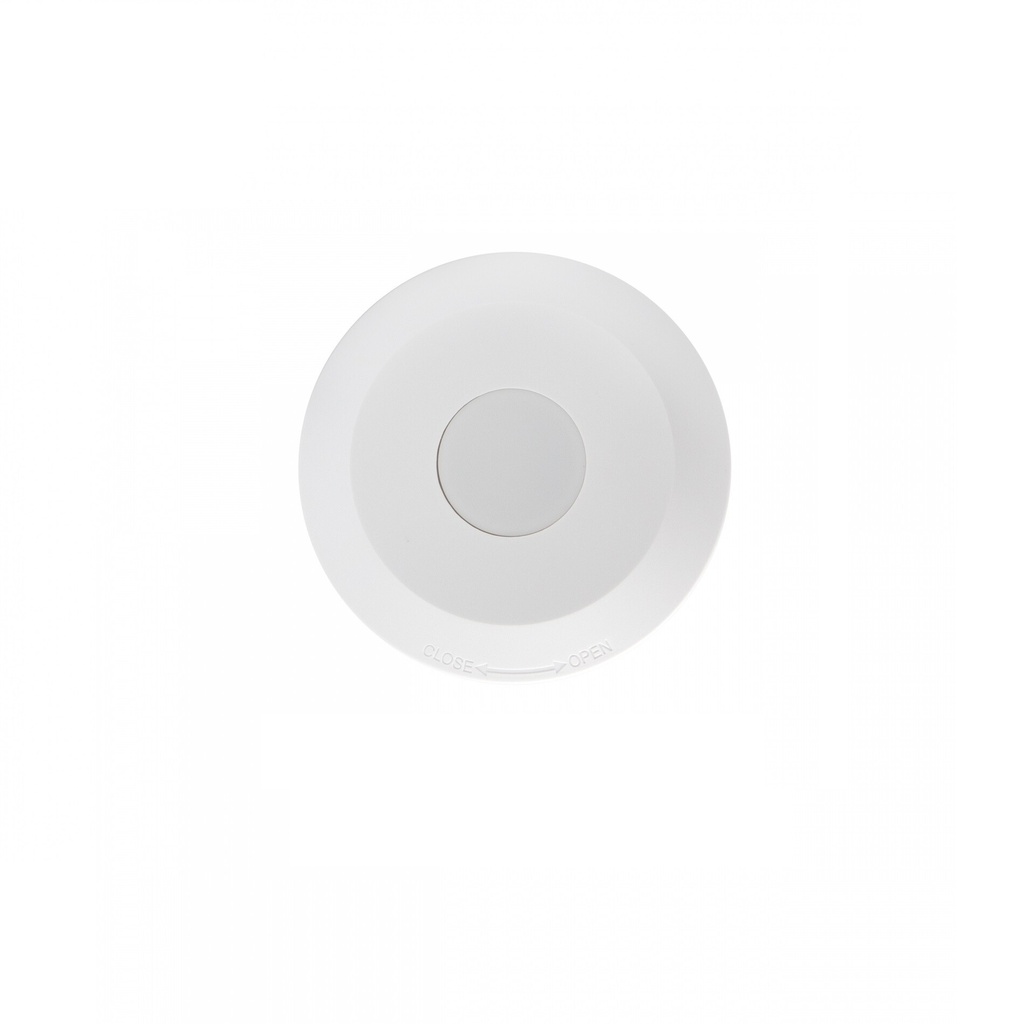

Presence and motion sensor microwave 360deg 800/400W 6M IP20 230V

Presence and Motion Sensor Microwave 360° 800/400W 6M IP20 230V with DIP Switch

This microwave-based presence and motion sensor is a smart solution for automating lighting and other electrical devices. It detects motion and presence within a 6-meter range and covers a 360-degree angle. The sensor is intended for indoor use and has an IP20 rating. An important feature is the built-in DIP switch that allows you to customize the sensor's function to your needs.

Function

The sensor uses microwave technology to detect changes in the environment. When it detects motion or presence within its area, it activates connected devices such as lighting. It can be set to turn on and off automatically, contributing to energy efficiency and convenience.

DIP Switch Settings

This sensor is equipped with a DIP switch that allows you to control the following parameters:

Lux (Brightness)

• Day: The sensor activates regardless of the room's brightness.
• 100 lux: The sensor activates only when brightness falls below 100 lux.
• 30 lux: The sensor activates only when brightness falls below 30 lux.
• Night: The sensor activates only when it's dark.

Time (Delay)

• 1 min: The light remains on for 1 minute after the last detected motion.
• 10 sec: The light remains on for 10 seconds after the last detected motion.

Sens (Sensitivity)

• 100%: The sensor is most sensitive and detects even small movements.
• 75%: Slightly lower sensitivity.
• 50%: Medium sensitivity.
• 25%: Lowest sensitivity; only larger movements are detected.

Applications

• Lighting: Perfect for automating lighting in hallways, stairwells, corridors, toilets, and storage rooms.
• Ventilation: Can be used to control ventilation in bathrooms or other areas.
• Monitoring: Can be integrated with alarm systems or surveillance cameras.
