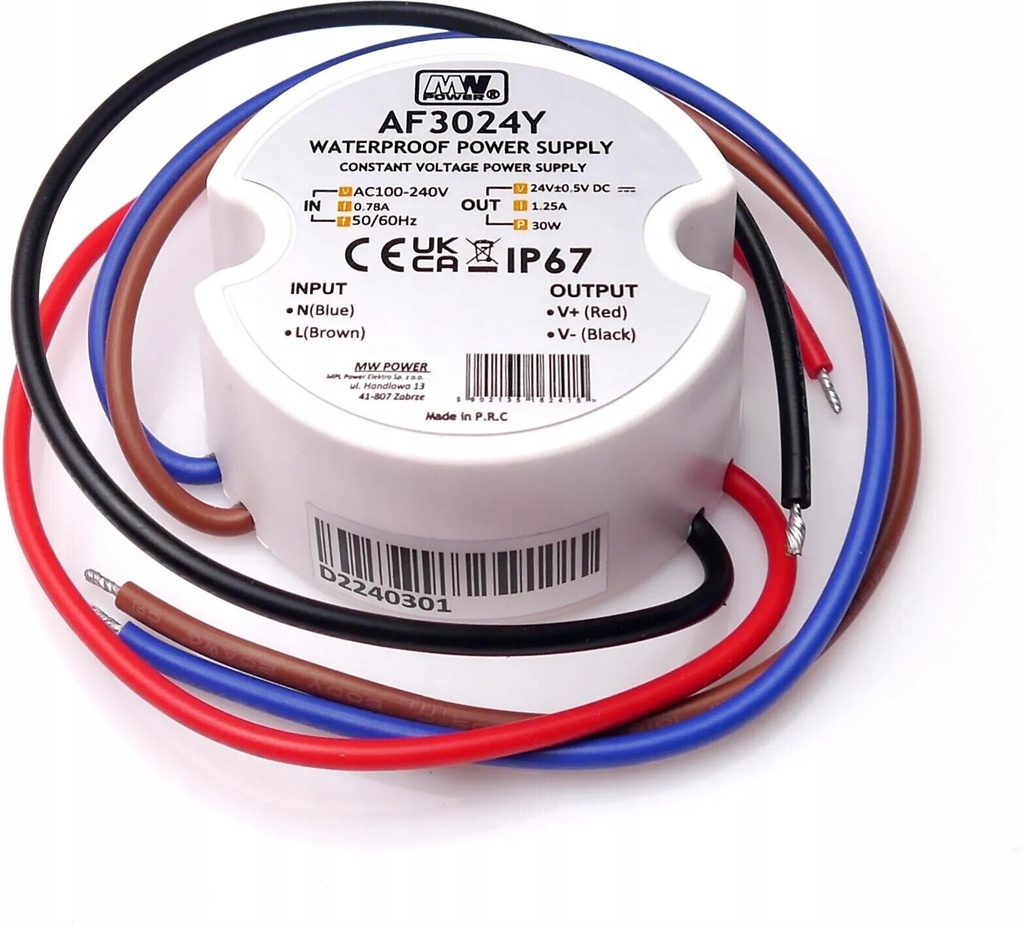

Constant Voltage transformer 30W 24V/1.25A IP67
Safe and reliable power supply
Article No. |
162415 |
EAN |
5902135162415 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Protect your LED products with our robust constant voltage transformer. With IP67 rating, it is completely dustproof and protected against temporary immersion in water. It provides a stable and safe 24V output for your LED strips, luminaires and other low-voltage products.
- Garden lighting: To drive LED strips, spotlights or other low-voltage fixtures in the garden.
- Facade lighting: To illuminate the facade of buildings with discreet and energy-efficient LED solutions.
- Bathroom: To drive LED lighting under the mirror, in the shower or on the ceiling.
- Kitchen: To create modern and stylish lighting under cabinets or in the kitchen island.
- Living room: To create indirect lighting with LED strips behind furniture or in ceiling moldings.
- Stores: To illuminate shop windows, shelves and products with customized LED lighting.
- Restaurants: To create atmospheric lighting
- Hotel: To create a relaxing atmosphere with indirect lighting.
Specifications
| Output Voltage | 24V DC |
| Power (W) | 30 W |
| Dimming | No |
| Voltage Ripple & Noise (max.) | 300mVp-p max |
| AC input voltage range | Universal |
| Protection class | II |
| Efficiency (typ.) | 85 % |
| AC Current (typ.) | 0.2 A |
| Inrush Current (typ.) | 25 A @ 230VAC Full load |
| IP protection level | IP67 |
| Over Current / Overload protection | Type: auto-recovery. |
| Short Circuit protection | Close output, recovers automatically after fault removed |
| Working Temperature range | -20°C~+50°C |
| Working Humidity range | 5%...95% RH, non condensing |
| Storage Temperature and Humidity | -40°C ÷ 80°C, 5 ÷ 95% RH non-condensing |
| Safety Standards | Compliance to EN 61347-1, EN 61347-2-13 |
| Isolation Resistance | I/P-O/P:100M? / 500VDC / 25°C / 70%RH |
| EMC Emission | EN62493:2015 |
| Compliance to | EN55015 |
| Compliance to | EN6100-3-2 |
| Compliance to | EN61000-3-3 |
| Harmonic Current | Compliance to EN61000-3-3 |
| Dimmensions (L x W x H) | 50mm x 22mm |
| Warranty | 2 years |
| EAN | 5902135162415 |
