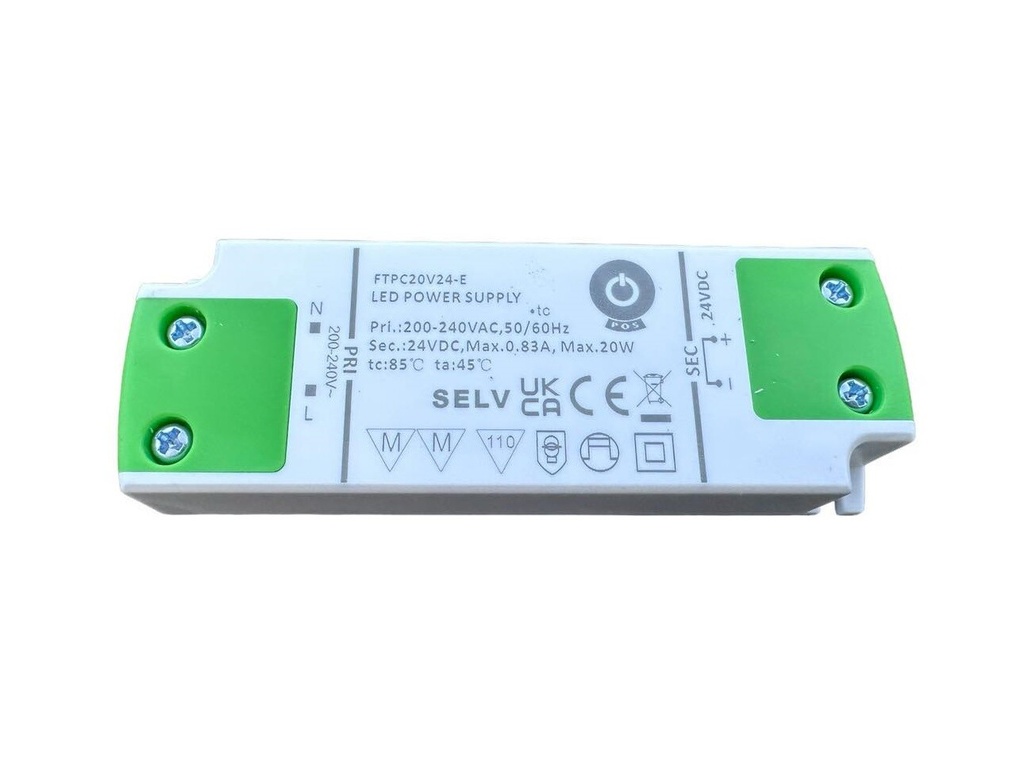

Transformer 24V constant voltage 20W
20W LED Constant voltage Switching Power Supply
Article No. |
152607 |
EAN |
5902135152607 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Power adapter used to convert 230V AC power from the wall socket to 24V DC power used by LED lighting and other electronic devices. It has a compact and slim design, which makes it ideal for installation in tight spaces.
Advantages:
- Compact and slim design: It takes up minimal space and is easy to install.
- High efficiency: It converts power efficiently and wastes minimal energy.
- Safety features: It has short circuit protection and overload protection to ensure safe use.
- Long life: It has a long life and does not need to be replaced frequently.
Areas of use:
- LED lighting: It is used to power LED strips, LED modules and other LED lights.
- Other 24V DC devices: It can be used to power devices that require 24V DC power, e.g. routers, modems and surveillance cameras.
Files
Specifications
| VOLTAGE | 24V |
| OUTPUT CURRENT | 0.83A |
| OUTPUT CURRENT RANGE | 0 ÷ 0.83A |
| OUTPUT POWER | 20W |
| LINE REGULATION | ± 1% |
| LOAD REGULATION | ± 2% |
| VOLTAGE TOLERANCE | ± 4% |
| RIPPLE & NOISE (MAX.) | 960mVP-P |
| SETTING TIME | 400ms / 230VAC at full load |
| INPUT VOLTAGE RANGE | 180 ÷ 264VAC |
| INPUT FREQUENCY RANGE | 47 / 63Hz |
| POWER FACTOR (MIN.) | PF >= 0.84 / 230VAC at full load |
| THD (MAX) | 50% |
| EFFICIENCY (MAX.) | 85% |
| AC CURRENT (TYPE) | < 0.17A / 230VAC |
| CURRENT (TYPE) | 10A / 230VAC; TWIDTH = 115us |
| MAX. NO. OFF PSU ON CIRCUIT BREAKER | B10 24 ; B16 37; C10 39; C16 49; D10 59; D16 79 |
| NO LOAD POWER CONSUMPTION (MAX.) | < 0.2W |
| OVERCURRENT | Range: 120% rated power Type, hiccup mode. Automatically resets after the error condition is removed. |
| SHORT CIRCUIT | Type, hiccup mode. Automatically resets after the error condition is removed. |
| OVERVOLTAGE Range | 150% rated output voltage. |
| WORKING TEMPERATURE | -20°C ÷ +45°C |
| WORKING HUMIDITY | 10 ÷ 90% RH |
| SAFETY STANDARDS | Compliance with EN61347-1, EN61347-2-13 |
| EMC EMISSIONS | Compliance with EN55015 |
| EMC IMMUNITY | Compliance with EN61547 |
| HARMONIC CURRENT | Compliance with EN61000-3-2 Class C |
| OTHER RULES | Compliance with Commission Regulation (EU) 2019/2020 |
| DIMENSIONS | 103 x 35.5 x 16 mm (L x W x H) |
| LIFETIME | 30,000 hours / 230VAC, full load, tc < 75°C |
| MTBF | 200,000 hours / 230VAC, full load, ta=25°C |
| WEIGHT AND PACKAGING | 0.065 kg ; 200 pcs./carton; carton dimensions: 38.5 x 21.6 x 21.5 cm |
| EAN | 5902135152607 |
