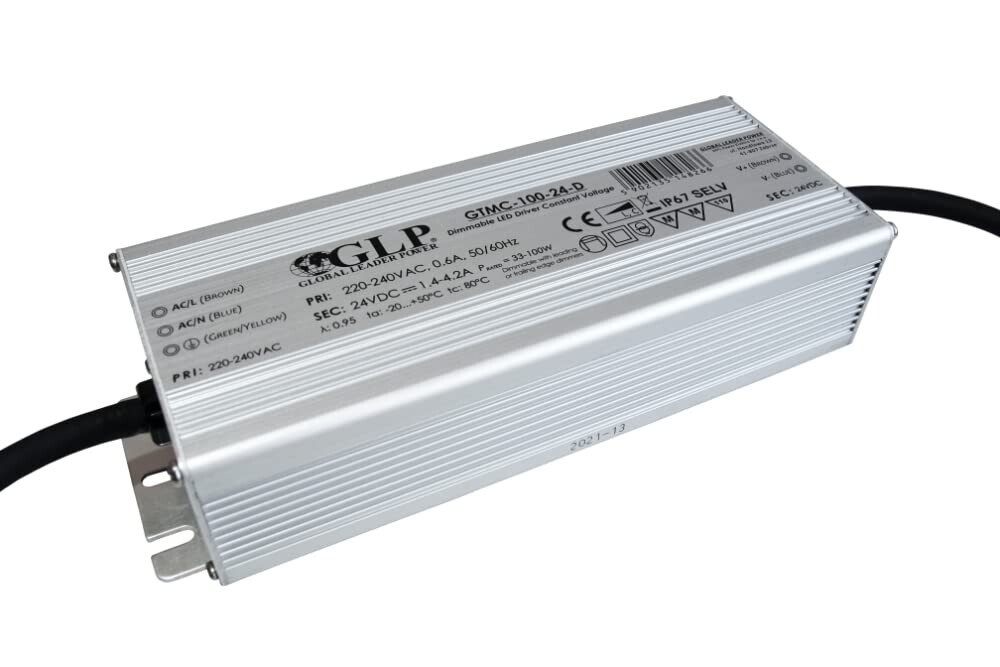

Dimmable Constant Voltage transformer 24V/1.4-4.2A, IP67
Customize your lighting according to your needs and mood
Article No. |
148266 |
EAN |
5902135148266 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
With our dimmable transformer, you get full control over your LED lighting. Adjust the brightness steplessly from a soft glow to bright light, depending on what you need. The wide current capacity makes it compatible with most LED strips and fixtures. In addition, it is completely waterproof and dustproof, which makes it perfect for both indoor and outdoor use.
- Bedroom: Create a relaxing atmosphere with dim lighting.
- Living room: Adjust the lighting according to different activities, such as reading or watching TV.
- Kitchen: Create a cozy atmosphere during dinners or functional work lighting when cooking.
- Mood lighting: Create different atmospheres for different parts of the day or different occasions.
- Accent lighting: Highlight specific details in the interior.
- Product lighting: Display products in an attractive way with adjustable brightness.
- Shop window lighting: Create an inviting atmosphere in shop windows.
- Gardens: Create a magical atmosphere with dimmable LED strips along walkways or in trees.
- Balconies: Extend the outdoor season with cozy lighting.
Files
Specifications
| Rated Voltage | 24V ± 5% |
| Current Range | 1.4 ÷ 4.2A |
| Rated Power | 100W |
| Frequency Range | 90 ÷ 120KHz / full load |
| Line Regulation | ± 2% |
| Load Regulation | ± 2% |
| Tolerance | ± 2% |
| Ripple & Noise (max.) | 300mVP-P |
| Setup | <= 500ms / full load |
| Voltage Range | 220 ÷ 240VAC |
| Frequency Range | 50 ÷ 60Hz |
| AC Current | 0.60A / full load |
| Rated Power | 115W |
| Power Factor | >= 0.95 / full load |
| THD | <= 15% / full load |
| Efficiency | >= 90% / full load |
| Inrush Current (max.) | 45A / 500us (Cold start) |
| Dimming Range | 1 – 100% of rated output current |
| Suitable dimmers | Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load |
| Overload Range | > 150% type hiccup, auto-recovery. |
| Short Circuit | Type hiccup, auto-recovery. |
| Over Voltage | Type hiccup, auto-recovery. |
| Working Temperature | Ta; 20°C ÷ 50°C, tc; 80°C |
| Working Humidity | 5 ÷ 85% RH non-condensing |
| Storage Temperature and Humidity | -20°C ÷ 70°C, 5 ÷ 85% RH non-condensing |
| Safety Standards Compliance to | EN 61347-1, EN 61347-2-13, EN 60598-1 |
| Withstand Voltage IN/OUT | 3.75kVAC |
| Isolation Resistance IN/OUT | 100M?/500VDC/25°C/70% |
| EMC Emission Compliance to | EN 55015, EN 62493 |
| EMC Immunity Compliance to | EN 61547 |
| Harmonic Current Compliance to | EN 61000-3-3; EN 61000-3-2 |
| Average lifetime | 30 000 hours |
| Dimensions | 191 x 70 x 40mm (L x W x H) |
| Primary cable | UL3x18AWG (300mm) |
| Secondary cable | UL2x18AWG (300mm) |
| EAN | 5902135148266 |
