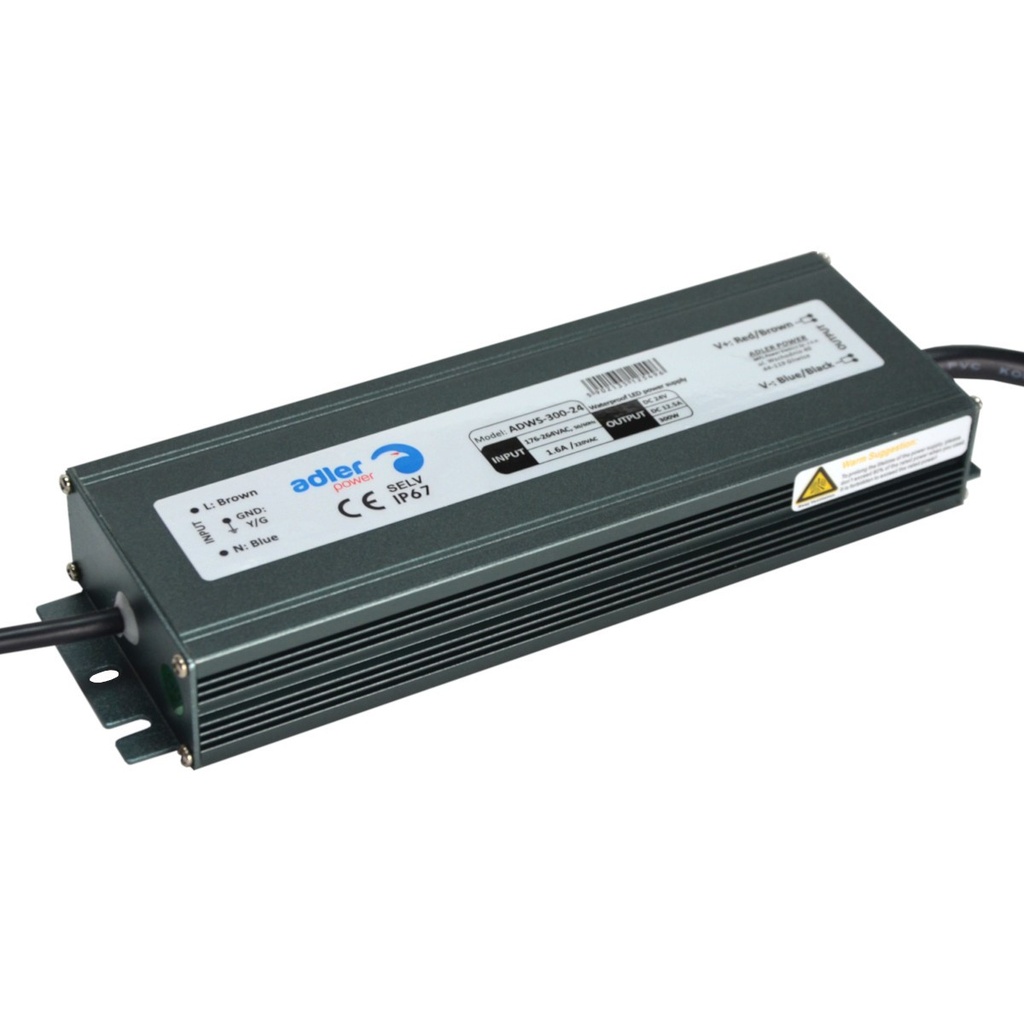

Power supply 24V 300W 12,5A IP67
Power supply IP67 300 Watt
Article No. |
125496 |
EAN |
5902135125496 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Constant voltage hermetic power supplies of the ADWS series by Adler are devices in a metal housing with IP67 protection degree. The power supply meets a number of safety standards and has numerous certificates, thanks to which it can be safely used both in home and commercial use. The power supplies in this series are characterized by small dimensions and low weight, which allows them to be installed in hard-to-reach places.
The construction of the power supply means that its main purpose is LED applications such as tapes, banners, advertising, light bulbs, fixtures and lamps. The device is also characterized by small dimensions and, as in similar constructions of this type, has built-in power cables.
The most important features of the power supply:
IP67 tightness class
Constant output voltage regardless of load
Insulated metal housing
Efficiency> 88%
Cooling with free air circulation
Protection: short circuit, overload, overvoltage
Files
Specifications
| Rated Voltage | 24V |
| Rated Current | 12,5A |
| Rated Power | 300W |
| Line Regulation | ± 1% |
| Load Regulation | ± 1% |
| Tolerance | ± 2% |
| Ripple & Noise (max.) | 1.50VP-P |
| Setup, Rise Time | 100ms, 50ms / 230VAC at full load |
| Hold up Time | 17ms / 230VAC at full load |
| Voltage Range | 170 ÷ 250VAC |
| Frequency Range | 47 ÷ 63Hz |
| Efficiency (typ.) | 87% |
| AC Current (typ.) | 2.40 A / 230VAC |
| Overload Range | 110 ÷ 180% of rated current Type: hiccup mode, auto-recovery. |
| Short Circuit Type | hiccup mode, auto-recovery. |
| Over Temperature | Range: 110°C ± 10°C (detect by main IC) |
| Type | Shut down o/p voltage, re-power on to recover |
| Working Temperature | -30°C ÷ 50°C (Refer to Derating Curve) |
| Working Humidity | 20 ÷ 99% RH non-condensing |
| Storage Temperature and Humidity | -40°C ÷ 80°C, 10 ÷ 99% RH non-condensing |
| Withstand Voltage | I-P/O-P: 1.5kVAC; I-P/GND: 1.5kVAC |
| EMC Emission | Compliance to EN55015 |
| EMC Immunity | Compliance to EN61547: 2009 |
| Harmonic Current | Compliance to EN61000-3-2: 2014; EN61000-3-3: 2013 |
| Dimensions | 228 x 72 x 32mm (L x W x H) |
| Weight and Packing | 1.1kg; 10pcs./ctn, ctn |
| Weight and dimensions | 11kg; 45.5 x 26 x 11.5cm |
