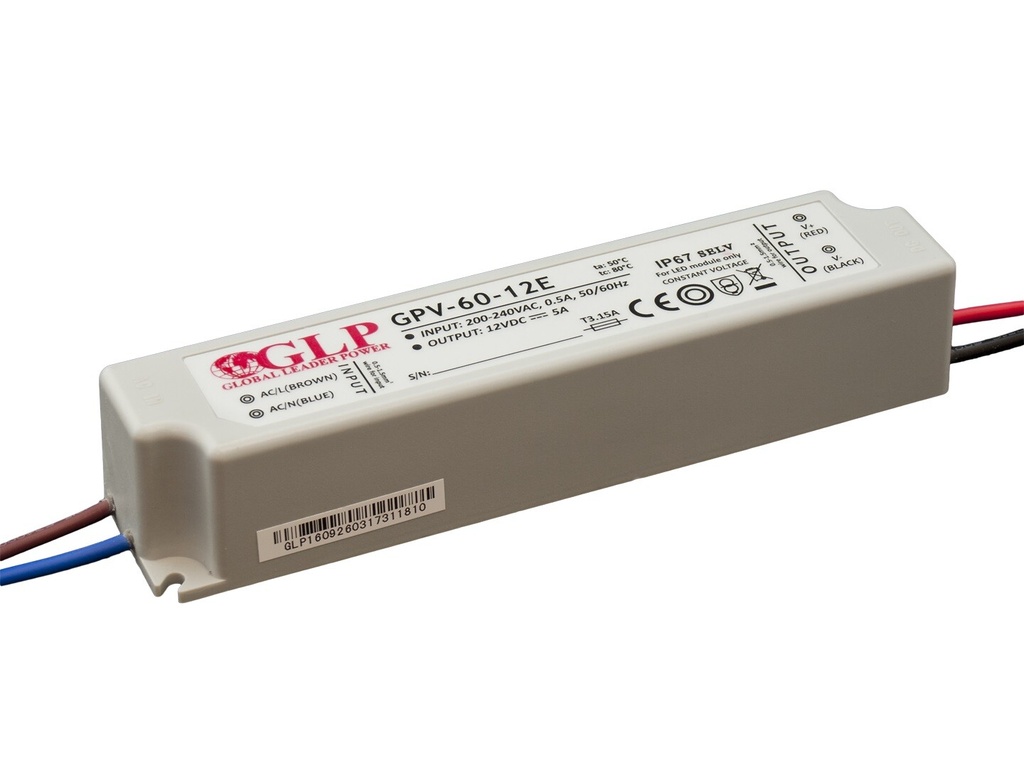

Transformer 12V Constant Voltage 60W IP67
Perfect for LED strips and garden lighting
Article No. |
120620 |
EAN |
5902135120620 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Transformer 12V Constant Voltage 60W IP67
This high-quality transformer is designed to deliver a stable 12V DC constant voltage with a maximum power of 60W. It is ideal for a variety of applications, including LED lighting, surveillance systems, and other 12V devices.
- Constant Voltage: Ensures a smooth and stable power supply, which is crucial for sensitive electronic devices.
- 60W Power: Sufficient power to run multiple LED lights or other 12V devices simultaneously.
- IP67 Rating: Complete protection against dust and water, making it suitable for both indoor and outdoor use. It can even be temporarily submerged in water.
Areas of Use:
- LED lighting (strips, spotlights, etc.)
- Garden lighting
- Surveillance systems
- Signs and advertising
- Other 12V electronic devices
Specifications
| Output Specifications | |
| Rated Voltage | 12V |
| Rated Current | 5A |
| Current Range | 0 to 5A |
| Rated Power | 60W |
| Line Regulation | ±1% |
| Load Regulation | ±2% |
| Tolerance [3] | ±3% |
| Ripple & Noise (max.) [2] | 200mVp-p |
| Setup, Rise Time [4] | 600ms, 25ms / 230VAC at full load |
| Hold Up Time (typ.) | 20ms / 230VAC at full load |
| Input Specifications | |
| Voltage Range | 180 to 264VAC; 254 to 370 VDC |
| Frequency Range | 47 to 63Hz |
| Efficiency (typ.) | 85% |
| AC Current (typ.) | 0.5A / 230VAC |
| Inrush Current (typ.) | 40A / 230VAC; Width = 400 µs |
| Maximum No. of PSUs on Circuit Breaker | |
| B10 | 3 |
| B16 | 5 |
| C10 | 4 |
| C16 | 6 |
| D10 | 4 |
| D16 | 7 |
| Leakage Current (max.) | 0.25mA / 240VAC |
| Protection Functions | |
| Over Current | |
| Range | Over 150% rated current |
| Type | Hiccup mode, auto-recovery |
| Short Circuit | |
| Type | Hiccup mode, auto-recovery |
| Over Voltage | |
| Type | Hiccup mode, auto-recovery |
| Working Environment | |
| Working Temperature | -20°C to +70°C (Refer to Derating Curve), ta: 50°C; tc: 80°C |
| Working Humidity | 20 to 90% RH, non-condensing |
| Storage Temperature & Humidity | -40°C to +80°C, 10 to 95% RH, non-condensing |
| Temperature Coefficient | ±0.03% / °C (0°C to +50°C) |
| Vibration | 10 to 500Hz, 2G, 10min/cycle, 60min each along X, Y, Z axes |
| Safety & EMC Regulations | |
| Safety Standards | Compliance to EN61347-1, EN61347-2-13, IP67 |
| Withstand Voltage | I-P/O-P: 3kVAC |
| Isolation Resistance | I-P/O-P: 1 100M?/500VDC/25°C/70% |
| EMC Emission | Compliance to EN55015 |
| EMC Immunity | Compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11 |
| Harmonic Current | Compliance to EN61000-3-3; EN61000-3-2 2 |
| Other Specifications | |
| Dimension | 148 x 32 x 28 mm (L x W x H) |
| Weight & Packing | 0.22 kg; 80pcs/ctn; carton weight & dimensions: 17 kg; 34.5 x 24 x 26 cm |
| EAN Code | 5902135120620 |
