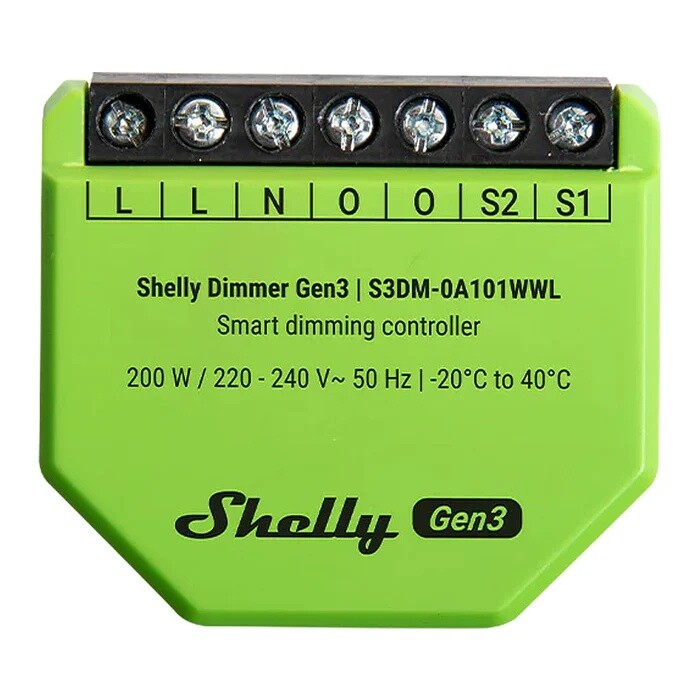

Shelly Dimmer Gen3
Article No. |
070526 |
EAN |
3800238070526 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly Dimmer Gen3 - Smart Home Dimmer
Shelly Dimmer Gen3 is a compact and smart dimmer that is easy to install and gives you full control over your lighting. Thanks to its sleek design, it fits in most wall and ceiling boxes. The device can be used as a regular light dimmer, but it can also be connected to the internet for smart control.
Key Features
- Neutral-free power supply: Requires 220–240V AC and works without a neutral wire (minimum 20W load or use of bypass required).
- Automatic dimmer calibration: Automatically finds the best dimming method.
- Adjustable brightness: Set minimum and maximum brightness levels, dimming speed, and fade effect.
- Two programmable inputs: Supports both spring-loaded push buttons and standard switches.
- Power measurement: Monitor energy consumption directly in the Shelly Smart Control app.
- Timer function: Built-in timer with staircase automation function.
- Scheduling and astro timer: Create weekly schedules or synchronize with sunrise and sunset.
Compatible Load Types
- Dimmable LED lamps: Up to 150 W
- Incandescent and halogen lamps: Up to 200 W
- Magnetic transformers with low-voltage incandescent lamps: Up to 200 VA
- Dimmable electronic transformers: Up to 200 W
Shelly Dimmer Gen3 connects via 2.4 GHz WiFi and has built-in Bluetooth, just like other Shelly Pro, Plus, and Gen3 devices. It can also act as a gateway for Shelly's battery-powered Bluetooth devices. With Shelly Dimmer Gen3, you get a versatile, powerful, and smart solution for lighting control that is both easy to install and adapt to your needs.
Files
Specifications
| Dimensions (HxWxD) | 38x42.5x16.5 mm / 1.50x1.67x0.65 in |
| Weight | 24.3 g / 0.86 oz |
| Mounting | In-wall |
| Mounting Ring Material | Nickel-plated brass |
| Shell Material | Plastic |
| Shell Color | Shell: Lime, Print: Black |
| Connector Color | Black |
| Operating Temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. Altitude | 2000 m / 6562 ft |
| Power Supply | 220-240 V~ 50 Hz |
| Power Consumption | < 1.5 W |
| Neutral Not Needed | Yes |
| Min. Load without Neutral and without a Bypass | 20 W |
| Dimming Type | Trailing edge |
| External Protection | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Short Circuit Protection | Yes |
| Max. Output Power | 200 W |
| Voltmeter Range (AC) | 180 V - 240 V |
| Voltmeter Accuracy | ± 5 % (when used with neutral) |
| Ammeter Range (AC) | 0 A - 3 A |
| Ammeter Accuracy | ± 5 % (when used with neutral) |
| Internal-temperature sensor | Yes Precise measurement is possible only when used with neutral. |
| Wi-Fi Protocol | 802.11 b/g/n |
| RF Band | 2412 - 2472 ?Hz |
| Max. RF Power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol | 4.2 |
| RF Band | 2402 - 2480 MHz |
| Max. RF Power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| CPU | ESP32 C3, STM32 G051 |
| Clock Frequency | ESP32 C3: 40 Mhz |
| Flash | 8 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| Advanced schedules | Yes |
| KVS (Key-Value Store) | Yes |
| EAN | 3800238070526 |
