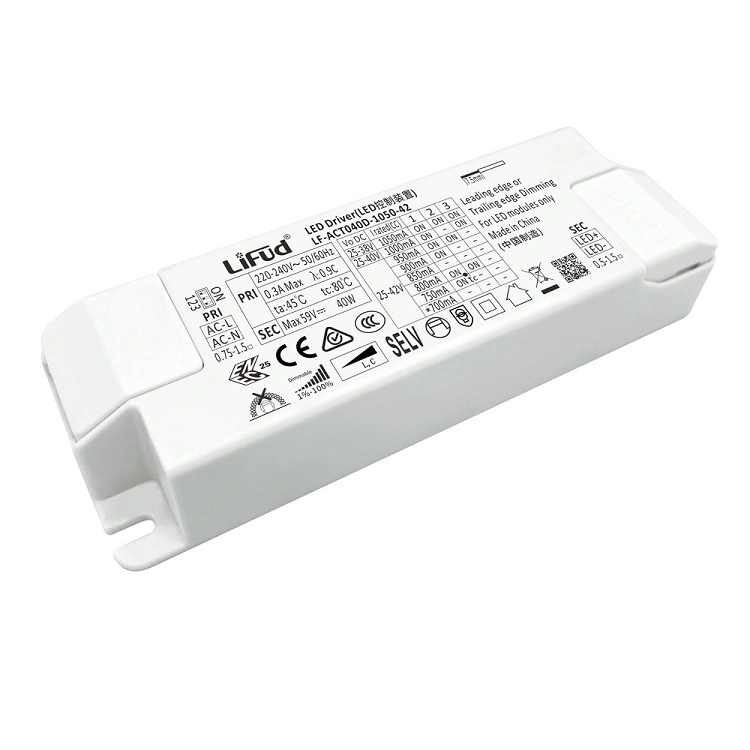

Triac Dimmable LED Driver 40W 700-1050mA
Adjustable output current (700-1050mA) with a lifespan of up to 100,000 hours via DIP switch
Article No. |
037023 |
EAN |
7350143037023 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Powerful Triac Dimmable LED Driver 40W
Future-proof your lighting installation with this high-quality and flicker-free 40W LED driver. The unit supports smooth and precise light control via Triac (leading edge and trailing edge dimming). The output current is flexibly adjustable between 700mA and 1050mA, making it adaptable to a wide variety of LED fixtures. It delivers a safe SELV output, high efficiency, and is designed to provide a long, maintenance-free lifespan.
Use Cases
- Large Downlights: Provide power and dimmability to high-performance downlights in public and private environments.
- LED Panels: Perfect for driving office panels where flicker-free light and adjustable brightness are required.
- Commercial Spaces: Ensure reliable and even lighting in retail stores, restaurants, and exhibition areas.
- General Lighting: Set the right atmosphere in conference rooms or lounges through seamless and silent dimming.
Files
Specifications
| Model Name | LF-ACT040D-1050-42 Triac Dimmable LED Driver |
| Dimming Capabilities | Leading edge and trailing edge (Triac), 1-100% range |
| Output Type | SELV |
| Light Fixture Compatibility | Class II |
| Lifetime | Up to 100,000 hours (Tc ≤ 80°C) |
| Guarantee | 5 years |
| Certifications | ENEC, CCC, SAA, CB, CE, RCM, RoHS 2.0 |
| Rated AC Input Voltage | 220-240V |
| AC Voltage Range | 198-264Vac |
| Mains Frequency | 50/60Hz |
| Power Factor | ≥0.9 |
| Efficiency | ≥85% (at 230Vac, full load) |
| Input Current | Max 0.3A |
| Inrush Current | 4A (t=100 µs) |
| Output Current Range | 700-1050mA (Adjustable via DIP switch) |
| Default Output Current | 700mA |
| Output Voltage | 25-42Vdc (700-950mA), 25-40Vdc (1000mA), 25-38Vdc (1050mA) |
| Output Power | 17.5-40W |
| Current Tolerance | ±5% |
| Output Ripple Current | ±3.3% (100 Hz) |
| Flicker Performance | CIE SVM ≤0.4, IEC-Pst ≤1 (Flicker-free) |
| Short Circuit Protection | Automatic reversible |
| Overload Protection | Yes |
| IP Rating | IP20 |
| Ambient Temperature (Ta) | -20°C to +45°C |
| Operating Humidity | 20-95% RH (no condensation) |
| Storage Temperature | -30°C to +80°C |
| Storage Humidity | 20-75% RH (no condensation) |
| Dimensions (L x W x H) | 145 x 46 x 27.5 mm |
| Mounting Hole Spacing | 131.1 x 30.7 mm |
| Product Weight | 153 g |
| Casing Material | White PC (Polycarbonate) |
| Input Cable Requirements | 0.75-1.5 mm² cross-section |
| Output Cable Requirements | 0.5-1.5 mm² cross-section |
| Packaging Unit | 70 pieces per unit |
| Packaging Dimensions | 385 x 285 x 210 mm |
| Gross Weight | 11kg ±5% |
