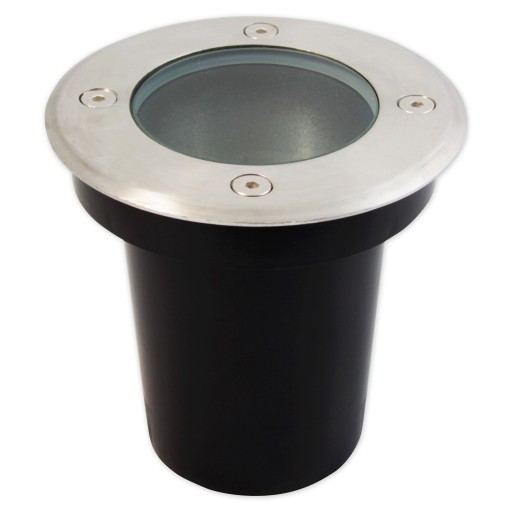

Round LED GU10 IP67 230V outdoor
Round LED GU10 luminaire IP67 230V 110mm
Article No. |
033180 |
EAN |
5903002033180 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Ground spotlight with replaceable GU10 light source and a higher IP rating of IP67 for installation in the ground. Suitable for use in the garden, on the driveway, and other similar locations. Does not include a connection terminal; purchase two pieces of 888802.
Specifications
| Input current | AC 85-265V 50 / 60Hz |
| Light source | 1x GU10 (max. 35W) [not included] |
| Resistance class | IP67 IK09 |
| Permissible pressure | 95 kg / cm2 |
| Housing material | Aluminum |
| Cover material | stainless steel + tempered glass |
| Socket material | Plastic |
| Number of chokes | 2 |
| Recommended cable thickness for the gland | 5.5-6.0 [mm] (3x0.75) |
| Dimensions with the sleeve | Ø110 x 110 [mm] |
| Mounting hole | Ø100 [mm] |
| Working temperature | -25 ~ 45 ° C |
