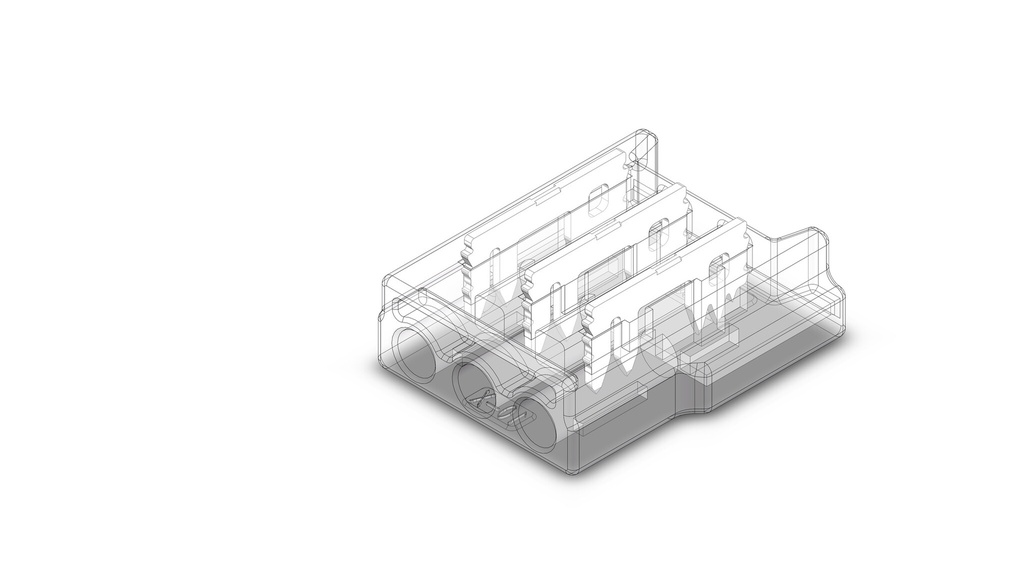

Strip to cable SMD CCT D1 3pin 10mm
Create flexible and convenient connections for your SMD LED lighting
Article No. |
032276 |
EAN |
7350143032276 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Perfect for connecting SMD LED strips to cables in a simple and flexible way. It is designed with 2-pin connectors that fit 10mm wide LED strips and provides a safe and stable connection.
- Extending LED Strips: Connect two separate LED strips to extend the total length.
- Power Source Connection: Connect your LED strip to a power cable to power the lighting.
- Connection to control unit: Use the connection to connect your LED strip to a control unit that enables control of brightness
- Installation in tight spaces: Because the connector is compact, it can be used to connect LED strips in tight spaces where it is difficult to maneuver larger connectors.
- Prototyping and experimentation: Use the connector to temporarily connect LED strips when developing prototypes or experimenting with different lighting solutions.
Specifications
| IP rating | IP20 |
| Max Voltage /Current | DC36V / 6A |
| Suitable Strip Light | 10mm CCT color SMD <=168LEDs/M and High Density |
| Suitable wire | 20AWG / 0.52mm² |
