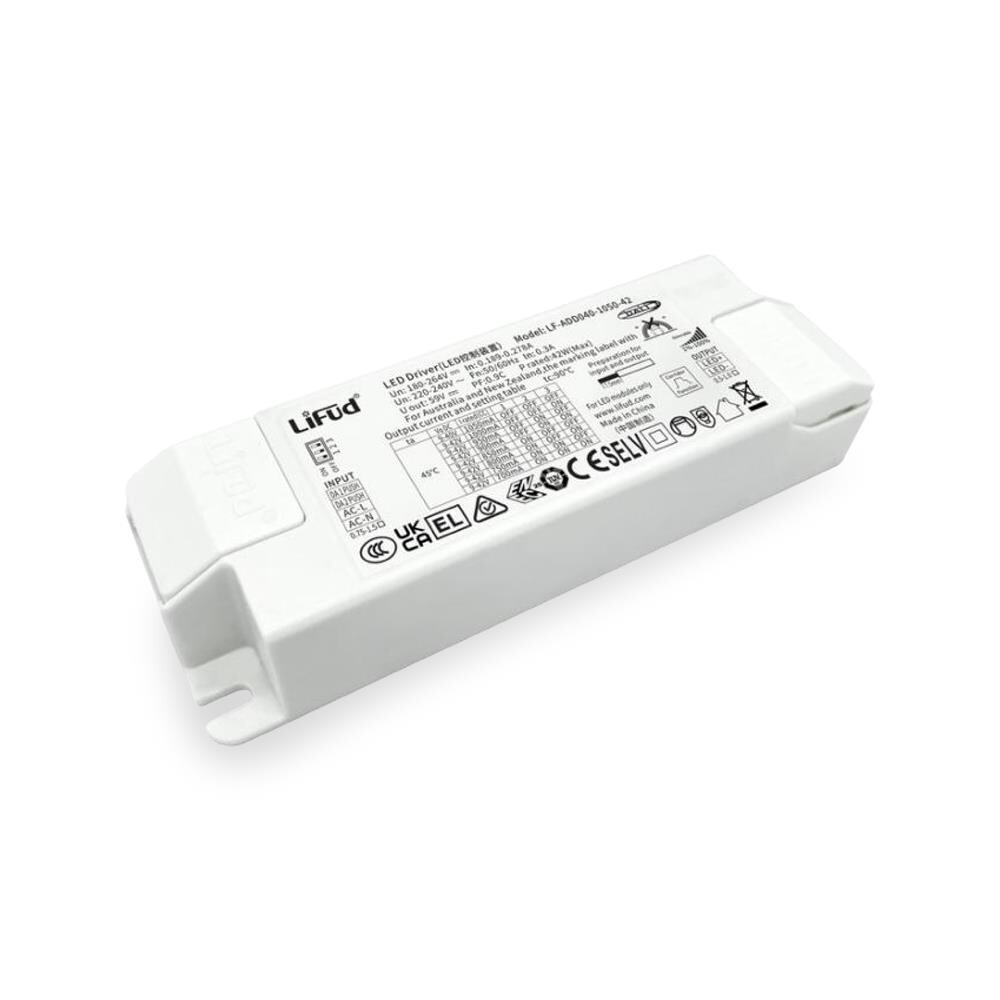

700~1050mA 40W constant current Dali + push dimmable LED driver
Article No. |
032080 |
EAN |
7350143032080 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
700~1050mA 40W konstantström Dali + push dimbar LED-driver – stabil og driftssikker strømforsyning til dine LED-armaturer.
Files
Specifications
| Model | LF-ADD040-1050-42 |
| Output Voltage | 9-42Vdc |
| Output Current | 700mA - 1050mA |
| Output Flicker Index (Modulation Depth) | IEC-Pst <=1, CIE SVM <=0.4 Complies with IEEE Std 1789-2015 |
| Current Tolerance | +5% |
| Temperature Drift | ±10% |
| Start-up Time | <2S |
| AC Input Voltage | 220-240Vac (voltage limit: 198-264Vac) |
| DC Input Voltage | 180-264Vdc |
| Input Frequency | 50/60Hz |
| Input Current | 0.3A max. Current: 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA 1050mA (adjustable via DIP switch) |
| PF | >0.97 |
| THD | <20% |
| Efficiency | >=87% |
| Inrush Current | <25A&200uS |
| Load Quantities of Circuit Breaker | B10: 23 pcs; C10: 38 pcs; B16: 37 pcs; C16: 61 pcs |
| Leakage Current | <0.7mA |
| Standby Power Consumption | <=0.5W (when PWM OFF signal is effective) |
| Open Circuit | <59V |
| Short Circuit | mode (auto-recovery Hiccup) |
| Operating Temperature | -30°C-+45°C |
| Operating Humidity | 20-95%RH (no condensation) |
| Storage Temperature/Humidity | -30°C-80°C (6 months in Class I environment); 20-75%RH (no condensation) |
| Atmospheric Pressure | 86-106kPa |
| Warranty | 5 years |
| Certifications | CE, RoHS |
| EAN | 7350143032080 |
