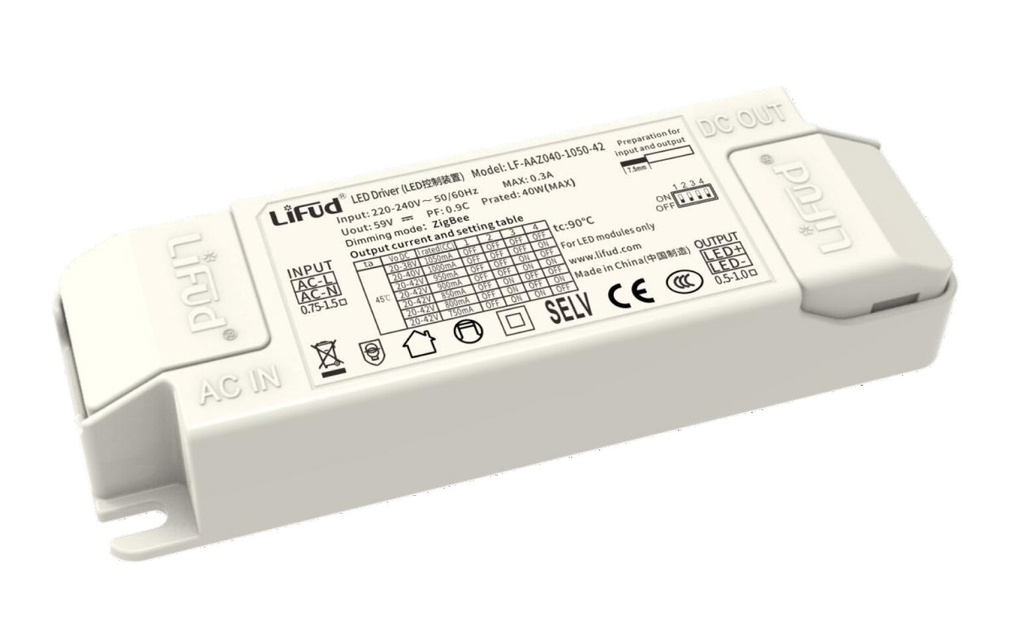

750~1050mA 40W constant current Zigbee dimmable LED driver
Article No. |
032073 |
EAN |
7350143032073 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
.
Files
Specifications
| Model | LF-AAZ040-1050-42 |
| Type | Constant current, Zigbee dimmable |
| Power | 40W |
| Electrical | |
| Input Voltage | 220-240Vac (198-264Vac range) |
| Output Voltage | 20-42V (depending on current setting) |
| Current | 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA (adjustable via DIP switch) |
| Efficiency | >=86.5% (depending on current setting) |
| Power Factor | >=0.95 |
| THD | <15% |
| Protections | Over voltage, short circuit |
| Dimming | |
| Type | Zigbee |
| Range | 2%-100% |
| Environmental | |
| Operating Temperature | -20°C to +45°C |
| Humidity | 20-90% RH (non-condensing) |
| IP Rating | IP20 |
| Physical | |
| Dimensions | 141.4 x 45.9 x 27.7 mm |
| Weight | 135.5g Warranty: 5-year |
| Certifications | CE, CCC |
