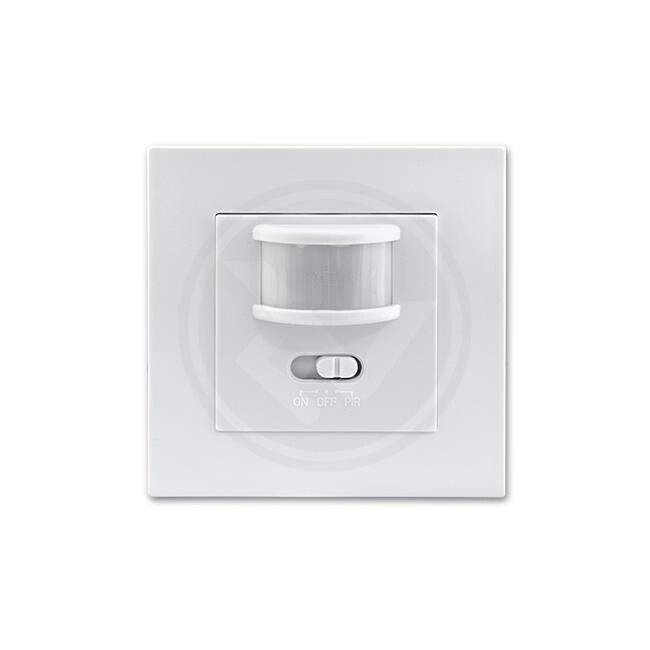

Motion detector with IR detector 140°
Article No. |
030240 |
EAN |
5903002030240 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Motion detector with IR detector. 140 ° motion detection.
The relay is activated between 3-2000 lux selectable.
Call time for motion monitor: 10 s-7 min
Maximum 10 meters sensitivity
Auto: the light illuminates when activated by the IR sensor.
Off: the lamp never lights up
On: the lamp is lit continuously
Motion monitor with light relay for recessed mounting in a box.
Activated when moving within 140 ° Controls for manual on and off.
The motion detector reads motion and turns on lights that light up a preset time. A built-in photocell can be set to turn off lights automatically. Ideal for home use and for energy savings.
Please follow the connection instructions in picture no: 2
Set the time the lamp should be on the dial: TIME
Set how bright it should be on the LUX knob when the lamp is to be lit.
The lamp is connected between N and L0
Specifications
| Voltage | 220-240V AC |
| Current frequency | 50Hz |
| Photosensitivity (activation threshold) | 3/2000 LUX (selectable) [LUX] |
| Lighting time | 10s-7min (selectable) [TIME] |
| Sound detection | 30-90db (selectable) [MIC] |
| Detection distance | Max. 10 m (<24 ° C) |
| Max. Load | 1200W |
| Power consumption | ca 0,5W |
| Detection area | 140 ° |
| Ambient temperature | -20 ~ + 40 ° C |
| Humidity | <93% RF |
| Mounting height | 1,0 ~ 1,8 m |
| Motion detection | 0,6-1,5 m / s |
