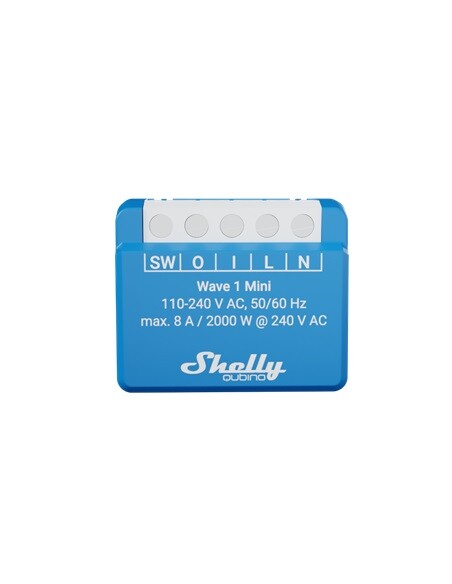

Shelly Wave 1 Mini
A secure, energy-efficient Z-Wave smart switch compatible with all certified Z-Wave gateways
Article No. |
269138 |
EAN |
9800235269138 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions
Shelly Wave 1 Mini – praktisk tilbehør til dit Shelly smart home-system.
Specifications
| Power supply | 110 - 240 V AC, 50/60 Hz |
| Power consumption | < 0,3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 8 A |
| Max switching power AC | 2000 W |
| Max. switching voltage DC | 30 V |
| Max. switching current DC | 5 A |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave® repeater | Yes |
| CPU | Z-Wave® S800 |
| Z-Wave® frequency band | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in |
| Weight | 19 ±1 g / 0.65 ±0.04 oz |
| Mounting | Wall box |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
| EAN | 9800235269138 |
