Mi-Light FUT077ZR 9W Deep Anti-glare RGB+CCT LED Downlight (Zigbee 3.0+2.4G)
A 9W smart LED downlight with anti-glare, full RGB+CCT color, and adjustable brightness, controlled via Zigbee 3.0 and 2.4G RF.
Article No. |
186126 |
EAN |
6970602186126 |
Terms and Conditions
14-day money-back guarantee
Shipping: 2-3 Business Days
Descriptions

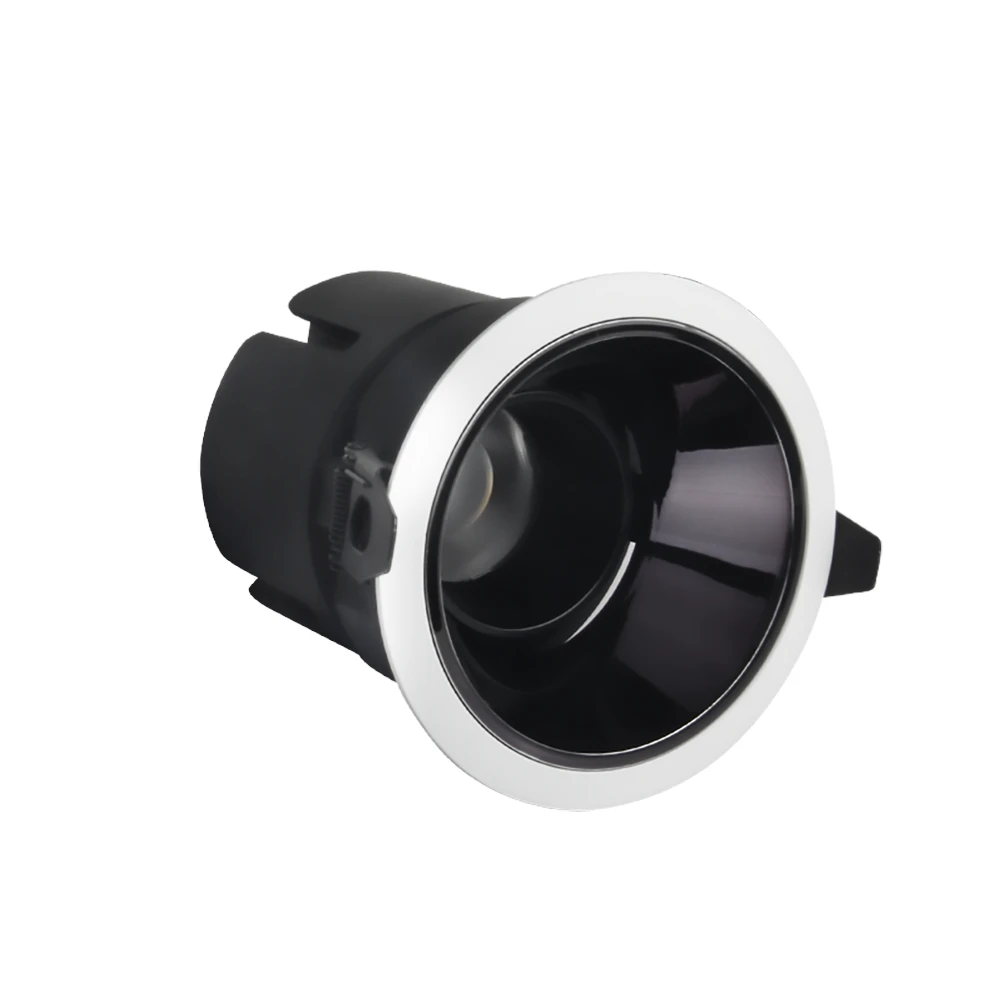

FUT077ZR 9W Deep Anti-glare RGB+CCT LED Downlight (Zigbee 3.0 + 2.4G)
The FUT077ZR is a 9W LED downlight with a deeply recessed design that reduces glare for enhanced eye comfort. Unlike the CCT model (FUT075ZR), this downlight offers full RGB (Red, Green, Blue) color mixing in addition to adjustable color temperature (CCT) from warm white to cool white. It is dimmable and can be controlled wirelessly via both Zigbee 3.0 and 2.4G RF technology, making it ideal for smart home environments.
Key Features and Functions:
- Power: 9W
- Luminous Flux: 550 lumens (LM)
- Color Temperature (CCT): Adjustable from warm white (2700K) to cool white (6500K).
- Color: Full RGB color mixing (millions of colors).
- Dimmable: Yes, with 4096 dimming levels and a dimming range from 0.1% to 100%.
- Anti-glare Design (Deep Anti-glare): Minimizes glare for enhanced comfort.
- Color Rendering Index (CRI): >90, indicating good color reproduction.
- Beam Angle: 24°
- Protocol: Zigbee 3.0 + 2.4GHz RF
- Control Distance:
- Zigbee: 50M (open area)
- 2.4G RF: 30M
- Smart Home Integration: Compatible with standard Zigbee 3.0 gateways (e.g., Philips Hue, IKEA TRÅDFRI, Amazon Echo devices, Tuya Smart app) and supports voice control via Amazon Alexa and Google Assistant (requires Zigbee 3.0 gateway).
- Additional Functions (with Zigbee gateway): Wireless dimming, remote control, timer function, group control, music rhythm (may vary depending on gateway).
- Input Voltage: AC100~240V 50/60Hz
- PF: >0.5
- Luminous efficiency: 60LM/W
- IP rate: IP20 (not waterproof, for indoor use only).
- Working Temperature: -10~40°C
- Hole Size (for installation): 75mm
- Certification: CE, EMC, LVD, RED
Advantages:
- Comprehensive Color Options: RGB+CCT provides full control over both color and white shades.
- Reduces eye strain with its anti-glare design.
- Broad compatibility with smart home systems via Zigbee 3.0.
- Option for traditional remote control via 2.4G RF.
Files
Specifications
| Model No. | FUT077ZR |
| Input Voltage | AC100~240V 50/60Hz |
| Power | 9W |
| PF | >0.5 |
| CRI | >90 |
| Color temperature | 2700~6500K |
| Luminous Flux | 550LM |
| Luminous efficiency | 60LM/W |
| Beam Angle | 24° |
| Wireless Communication (RF) | Zigbee 3.0 + 2.4GHz RF |
| Control Distance | |
| Zigbee | 50M (open area) |
| 2.4G RF | 30M |
| IP rate | IP20 |
| Working Temperature | -10~40°C |
| Hole Size | 75mm |
| Dimming Range | 0.1%-100% |
| Certification | CE, EMC, LVD, RED |
| EAN | 6970602186126 |
